Raz Züm Shower Commode

Prescription only

Adult, Bathroom Aids, Mobile Shower Commodes Tag: Raz

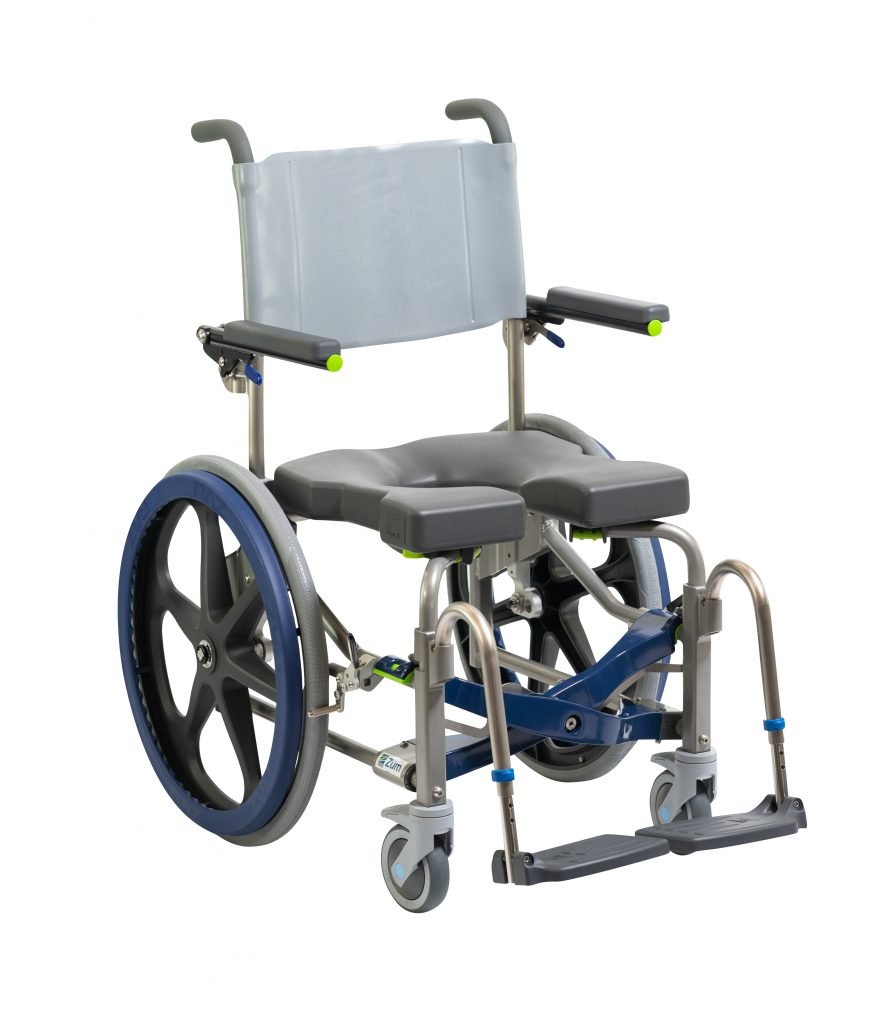

The Züm-AP/SP are the first folding frame mobile shower commode chairs that offer the rigidity that you would expect from a premium product.

A folding shower commode making lives easier

Designed and manufactured to the highest standards of the discerning healthcare professional.

Züm can be positioned fully over the toilet thanks to its smart crossbrace

17 standard seats + custom

Crossbrace lock-down system provides unparalleled rigidity

Description

The Züm-AP/SP are the first folding frame mobile shower commode chairs that offer the rigidity that you would expect from a premium product. The unique cross brace design allows the Züm to fit fully over a toilet for optimal alignment of the aperture with the toilet bowl. Standard features include:

Crossbrace with low pivot point and forward arch allows Züm to be positioned fully over the toilet
Crossbrace lock-down system and rear seat support tube provide unparalleled rigidity
18”W aluminum frame – fits over most standard toilets
Unrestricted front and side access
17 standard seats + custom (with IPAS)
Removable back support
Flip-up arm supports with optional lock kit
22” or 24” wheels available for the Züm-SP model
2” fore/aft rear wheel adjustment (fine tunes center-of-mass position for SP model)
Quick-Release Axles are standard
BYOW (Bring Your Own Wheels) custom axle receivers to allow use of client’s own wheelchair wheels

Only Raz offers the Ischial & Pelvic Alignment System (IPAS), which allows the commode seat aperture to be comfortably centered around the ischial tuberosities for clients with a posterior or anterior rotated pelvis. With so many adjustments and options available, the Züm is a true prescriber-friendly, folding frame mobile shower chair.

Molded Seat

contoured for pressure reduction and pelvic stability
soft integral-skin foam for comfort and durability
available with open or bridged front
available sizes: 18″Wx17″D, 18″Wx20″D

Ischial Pelvic Alignment System

provides 2” of fore/aft adjustment so the seat can be aligned with the pelvis
allows centering of the aperture (opening) around the users’ ITs
seat locks in place for transfers
removes easily for cleaning
optional spacers for anterior or posterior seat angle adjustment

Adjustable Footrests

removable for transfers and cleaning
swing in and out easily
flip-up footplate
adjust for leg length without tools
available in regular length 16″-20½” and extended length 18″-22½”

Multi-Position Axle Plates

Provide 1.5″ of horizontal adjustment for optimum user / toilet bowl access
Allow use of 22″ or optional 24″ rear wheels

Commode Pan

Injection-molded pan is designed for function
Includes a lid for splash and odor control
Wide handle angled at 45 degrees provides better ergonomics
Sloped front of pan moves contents toward the handle to reduce offset load, thereby making it easier to carry
Receiver brackets under seat are visible from the rear of the chair, making it easier to slide the pan into place
Fits in a standard autoclave and Arjo Tornado Washer

Specifications

	Zum AP	Zum SP
Weight Capacity	160kg	160kg
Overall Width - Frame open	24″	24″
Overall Width - Frame Folded	11″	13″
Overall Length	34″	40″
Seat Width	18″	18″
Armrest Height Above Seat	8″	8″
Seat To Floor Height	21.5″	21.5″
Product Weight	20kg	26kg
