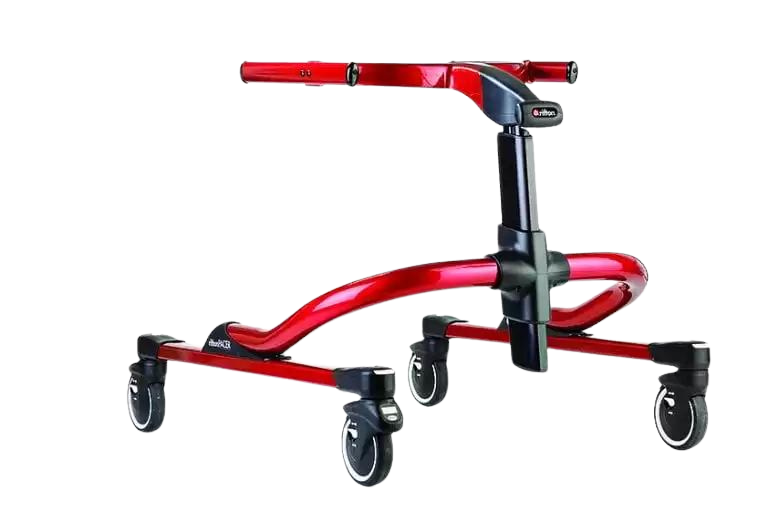

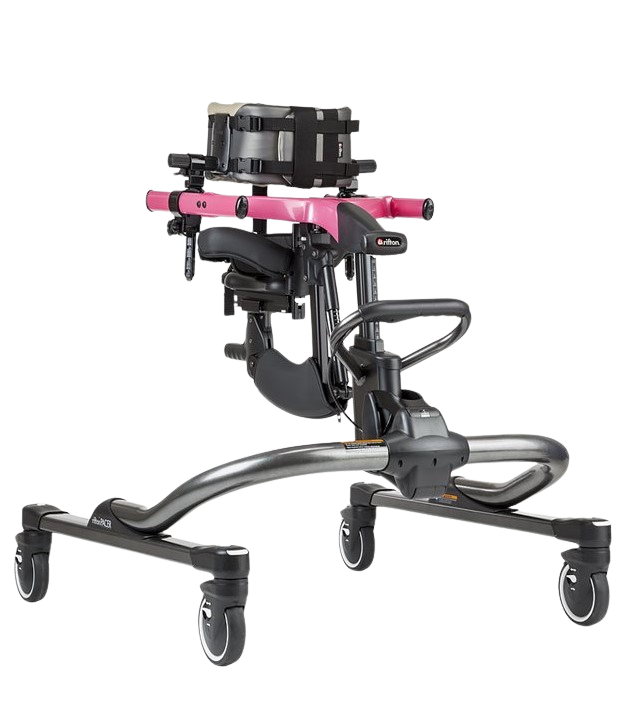

Rifton Pacer Gait Trainer
The Pacer is a system comprising of an upper frame with a choice of bases to accommodate clients with a broad range of abilities in a variety of settings. Everything about Rifton Pacers encourages progress for clients so nothing stands between them and the places they want to go.
Designed for a wide range of clients with varying abilities, Rifton Pacer gait trainers are renowned for their innovative, modular design, durability, flexibility and ease of use. When appropriately supported and positioned in a Pacer, independence and improved strength and confidence can be enjoyed. The Pacer Gait Trainer is versatile and a fully adjustable without the need for tools and it’s lightweight, aluminium frame folds down easily into the boot of a car or for storage.
Key Features
- Lightweight aluminium folding frame
- Height adjustable in 2.5cm
- Folding frame that fits easily into car boots
- Easy tool-free adjustments
- 5 sizes available
- Accessories that accommodate posterior or anterior Gait Trainer use
- Innovative Castors with swivel lock, brake, variable drag and one-way ratchet control
- Clients can be placed in either the anterior or posterior position with just a few simple adjustments
| Dimensions | Mini |
Small |
Medium |
Large |
X Large |
| Floor to top of arm prompt | 39 – 52 |
48 – 74 |
61– 89 |
81–119 |
86 –124 |
| Floor to top of MPS (not tilted)* | N/A |
25 – 51 |
24 – 60 |
43 – 89 |
50 – 95 |
| OVERALL WIDTH | |||||
| Standard base: | 52cm |
58cm |
66cm |
71cm |
80cm |
| Utility base: | N/A |
N/A |
76cm |
81cm |
N/A |
| Narrow treadmill/stability base: | N/A |
N/A |
89cm |
89cm |
N/A |
| Wide treadmill/stability base : | N/A |
N/A |
102cm |
102cm |
N/A |
| OVERALL LENGTH | |||||
| Standard base: | 57cm |
66cm |
76cm |
91cm |
101cm |
| Utility base | N/A |
N/A |
91cm |
103cm |
N/A |
| Treadmill/stability bases: | N/A |
N/A |
104cm |
104cm |
N/A |
| FRAME WEIGHT | |||||
| Standard base | 4.3kg |
4.7kg |
6.8kg |
7kg |
10kg |
| Utility base: | N/A |
N/A |
8.4kg |
8.7kg |
N/A |
| Narrow treadmill/stability base: | N/A |
N/A |
12.5kg |
12.5kg |
N/A |
| Wide treadmill/stability base: | N/A |
N/A |
12.7kg |
12.7kg |
N/A |
| DYNAMIC UPPER MOVEMENT | |||||
| Vertical: | N/A |
3.5cm |
5cm |
5cm |
5cm |
| Horizontal: | N/A |
4cm |
5cm |
5cm |
5cm |
| Maximum working load | 22.6kg |
34kg |
68kg |
91kg |
113kg |
| Standard | ISO11199- 3:2005 |
