Zippie Iris
The Zippie IRIS rotation-in-space wheelchair offers a superior combination of positioning, maneuverability, and increased portability with the XLOCK folding crossbrace option.
40° or 55° of Intelligent Rotation in Space Technology

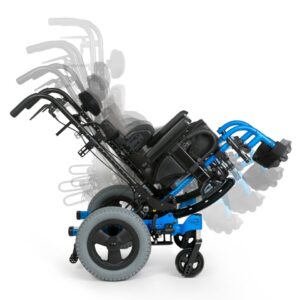

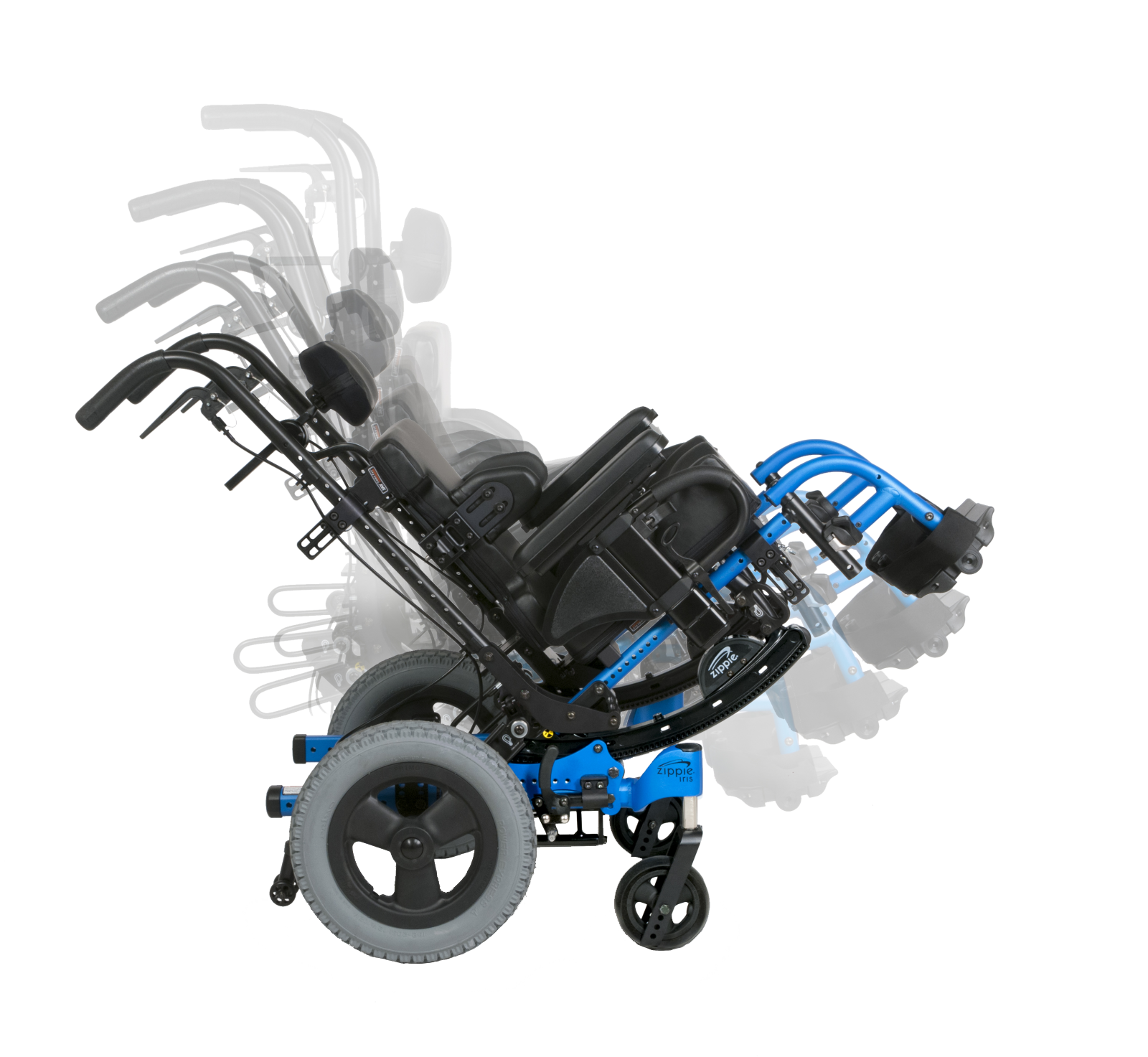

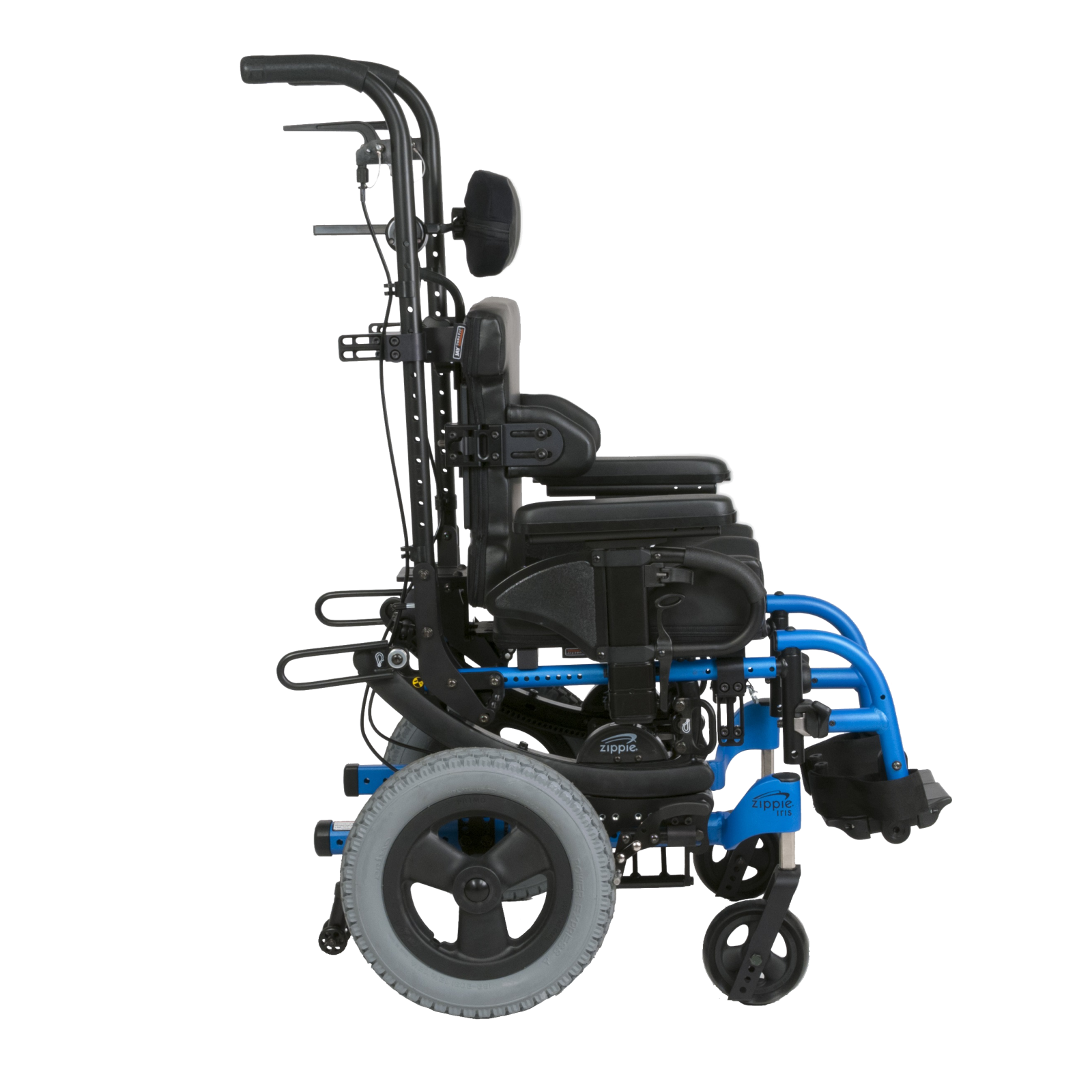

With patented Intelligent Rotation in Space technology, the Zippie IRIS tilt in space wheelchair features a seat frame that rotates around the child’s center of gravity. The rotation arm was designed specifically for paediatric users to ensure a smooth tilting motion. It also helps children remain comfortable and secure while tilting, and it is easy for parents and caregivers to control.
Available with 40° or 55° rotation ranges that can be set to achieve up to 45° or 60° of posterior rotation, the IRIS offers superior positioning capabilities.
Accessories for Caregiver Convenience

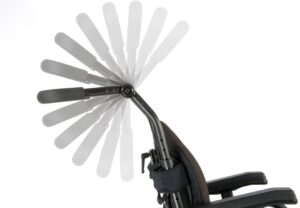

The IRIS wheelchair is available with a wide variety of options to help you manage daily activities involving your child’s care. The Foot Release Tilt Actuator eliminates exposed cables. Push-button hub locks located on the back canes are compact, easy to access, and easy to operate for any caregiver. Standard with the Height Adjustable backrest, the Angle Adjustable Stroller Handle has 260° of angle adjustability to fit varying caregiver heights and to enable pushing from a tilted position.
Growth Capabilities

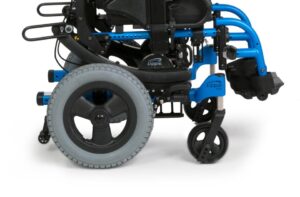

The IRIS paediatric wheelchair is designed to maintain proper support for your child as they grow. The folding frame option offers up to 4″ of built-in depth growth and 2″ of built-in width growth. The rigid frame option is available with width-adjustable strut tubes.
Additionally, through the True Fit Growth program, the original Zippie IRIS owner qualifies for one free growth kit within 5 years. The growth kit includes all parts and components needed to adjust the seat width/depth of the chair.
Optional XLOCK® Folding Crossbrace

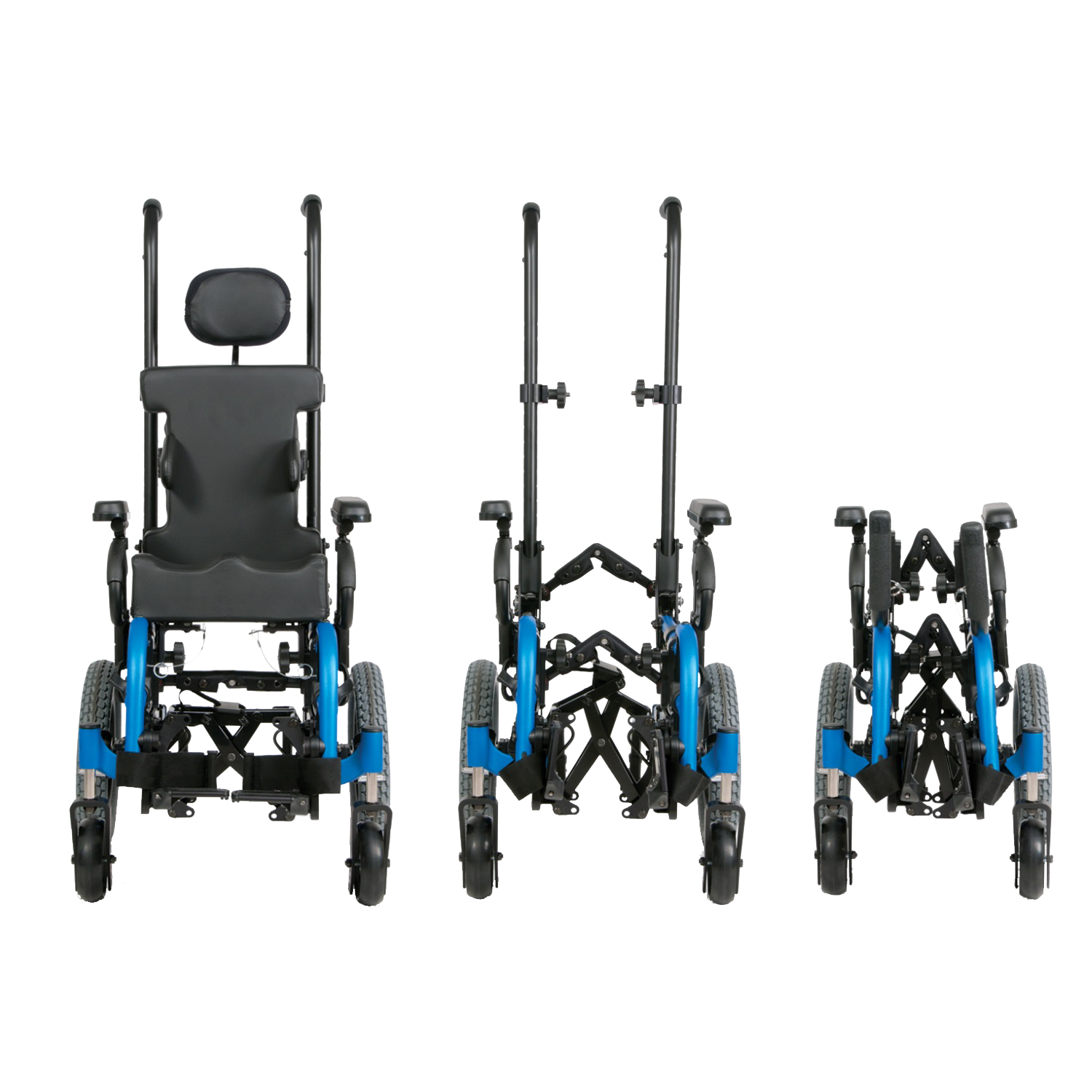

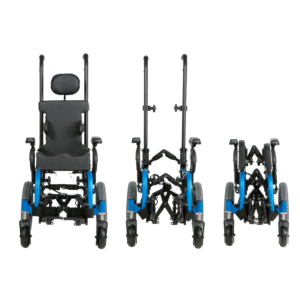

The Zippie IRIS now offers the benefits of both rotation-in-space technology and an optional folding frame. Its patented XLOCK folding crossbrace fully locks when unfolded for superior rigidity, and folds into a compact size for convenient transport.
| Specification | Measurement |
| Width | 17.5″ to 25.5″ |
| Seat Width | Folding: 10″ to 16″ (grows to 18″) Rigid: 10″ to 18″ |
| Seat Depth | 10″ to 18″ |
| Front seat height | 13″ to 19″ w/drop seat: 11″ to 17.5″ |
| Rear seat height | 13″ to 19″ w/drop seat: 11″ to 17.5″ |
| Backrest Height | 16″ to 24″ – Depending on back type |
| Backrest Angle | Fore (-) 5° to Aft (+) 30° |
| Frame Type | Tilting / Rigid / Folding |
| Maximum User Weight | 135 kg |
| Total Weight | Folding: 16kgs Rigid: 14.5kgs |
| Standard | AS 3695 & AS 3696 |
