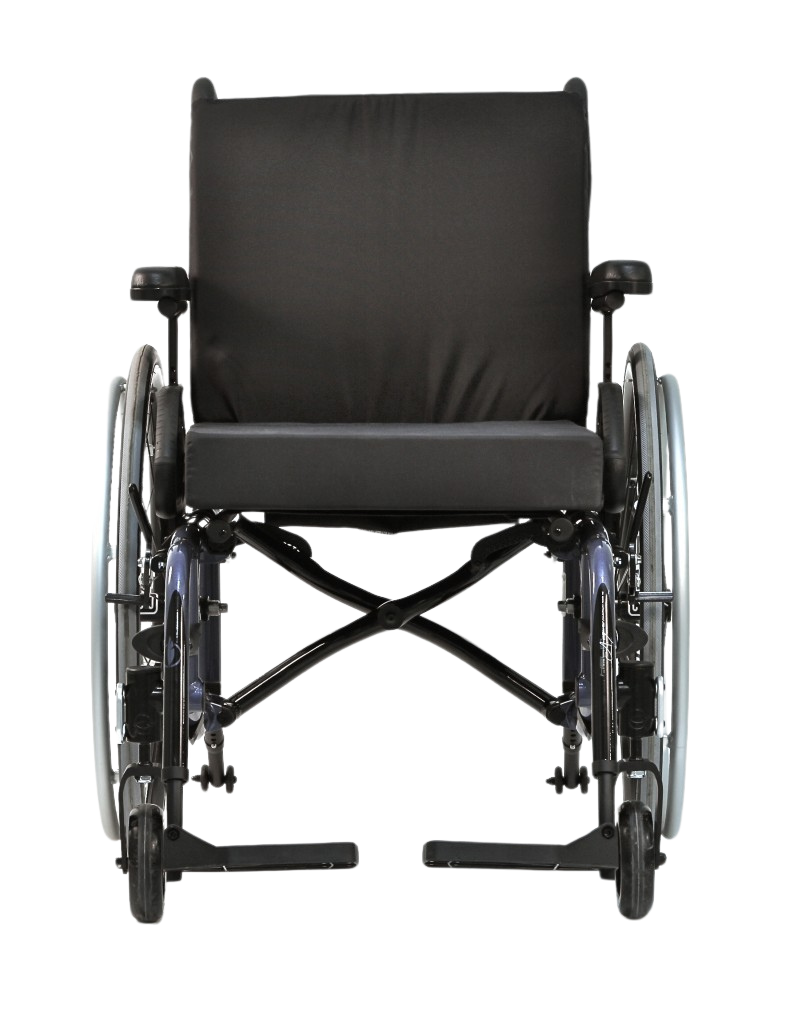

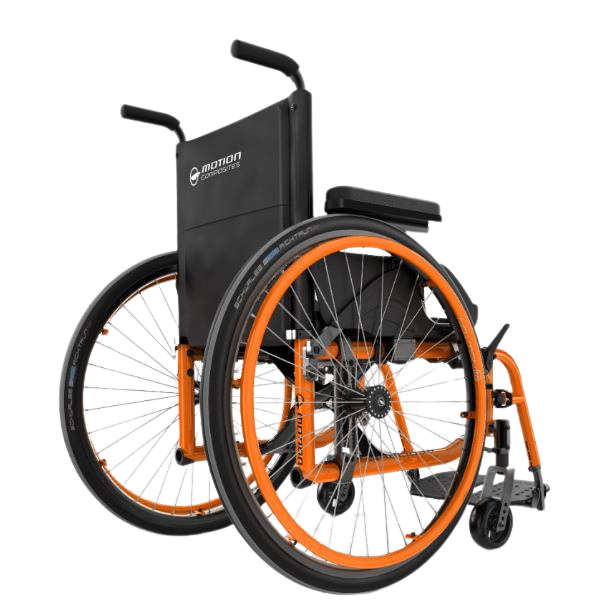

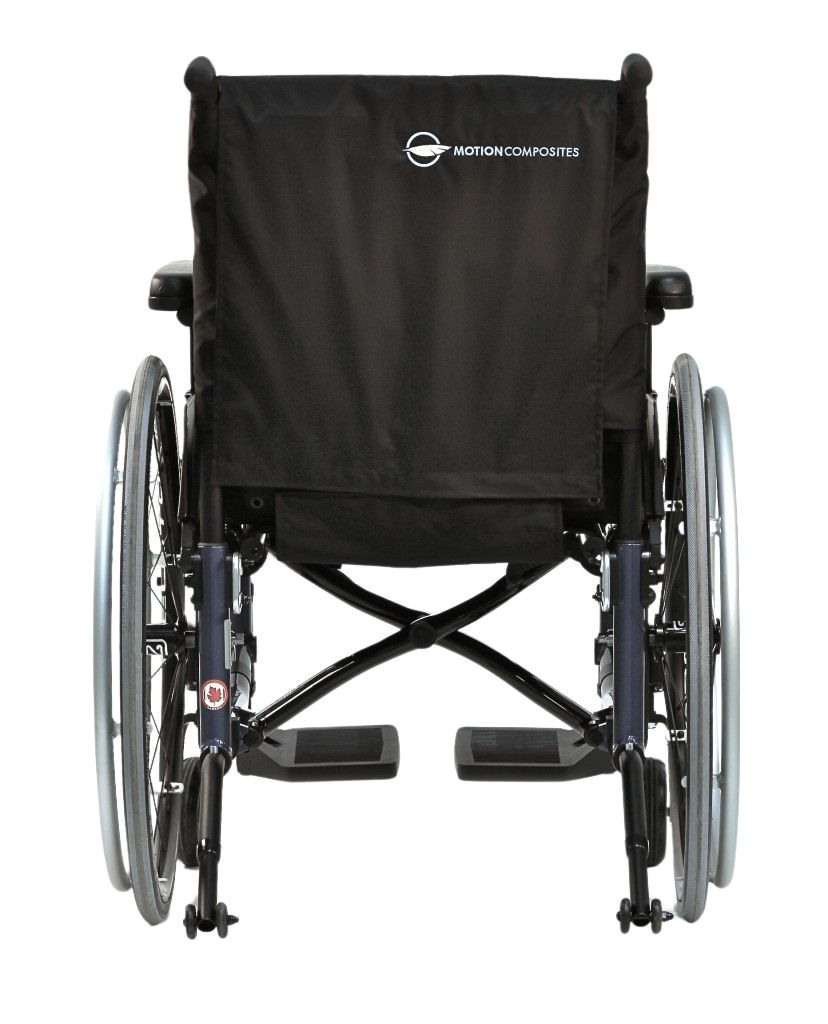

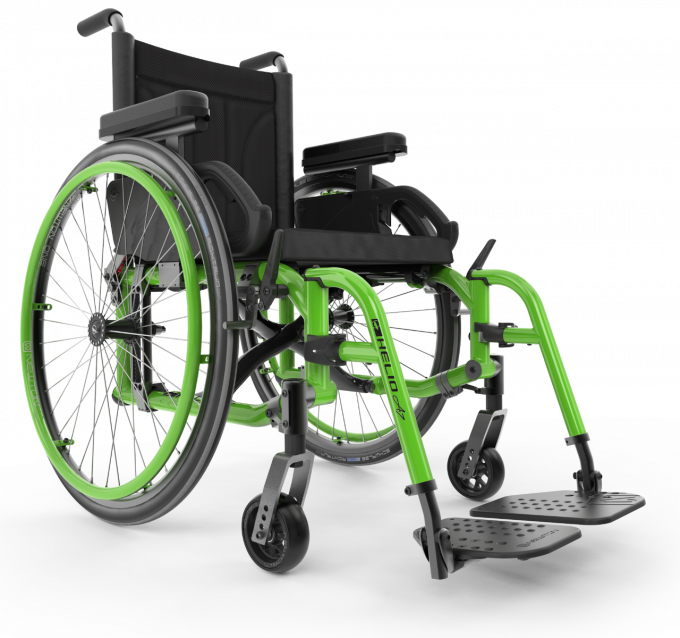

Motion Composites Helio A7
An agile, fully adjustable wheelchair with excellent propulsion to take you even further.
The Lightness Of 7000-Series Aluminum Alloy
By combining the latest hydroforming technologies with an aluminum alloy known for its excellent strength-to-weight ratio, Motion Composites created one of the lightest folding aluminum chairs on the market. Each HELIO A7 accessory and component was designed to reduce weight as much as possible for highly reactive handling.
Save Your Energy To Go Further
Ease of propulsion is an undeniable plus and, with the HELIO A7, you’ll enjoy remarkable agility. The completely symmetrical hydroformed cross brace, oval tubing and pivot axles work together while the unique folding system maximizes the frame’s stability, saving you considerable energy on a daily basis
Innovative And Fully Adjustable Components
HELIO A7 is a fully adjustable wheelchair. Maximizing stability and reactivity, the forged vertical axle plate offers the industry’s most precise rear wheel adjustability. The composite armrests quickly convert from flip-back to single post for easy configuration. Height can also be adjusted with the flick of a finger.
Optimal Seat-To-Floor Height
The frame’s innovative design allows you to achieve a super-low 12-inch (30.5-cm) front seat-to-floor height. In addition to easier contact with the floor, this feature provides better foot propulsion. Or, move it beyond 20 inches (50.8 cm) to meet your most challenging needs.
Endless colour combinations
Personalize your wheelchair to express your unique self by mixing and matching from over 15 color optiond for your frame and handrims!
| Specification | Measurement |
| Seat width | 14″ to 22″ |
| Seat depth | 14″ to 20″ |
| Front seat to floor | 13″ to 21″ |
| Rear seat to floor | 12″ to 20″ |
| Back height | 9″ to 24″ |
| Armrest Height | 6″ to 14″ |
| Front frame angle | 60°, 70°, 80°, 90° |
| Back angle | 85° to 110° |
| Wheel camber | 0°, 3°, 6° |
| Center of gravity | 1″ to 3 “ |
| Overall width | 20″ min 33 ” max. |
| Standard | AS/NZS 3695.1:2011 |
