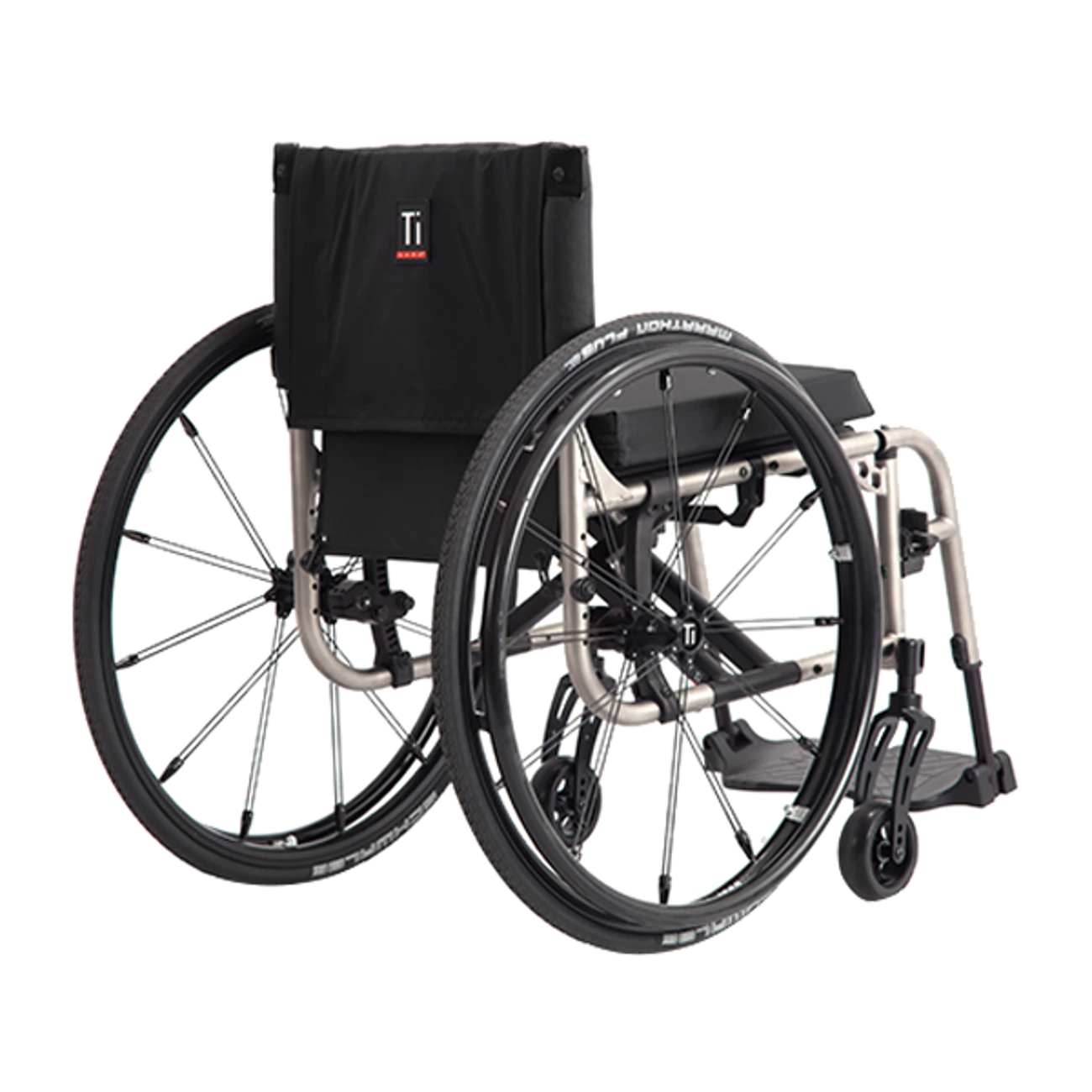

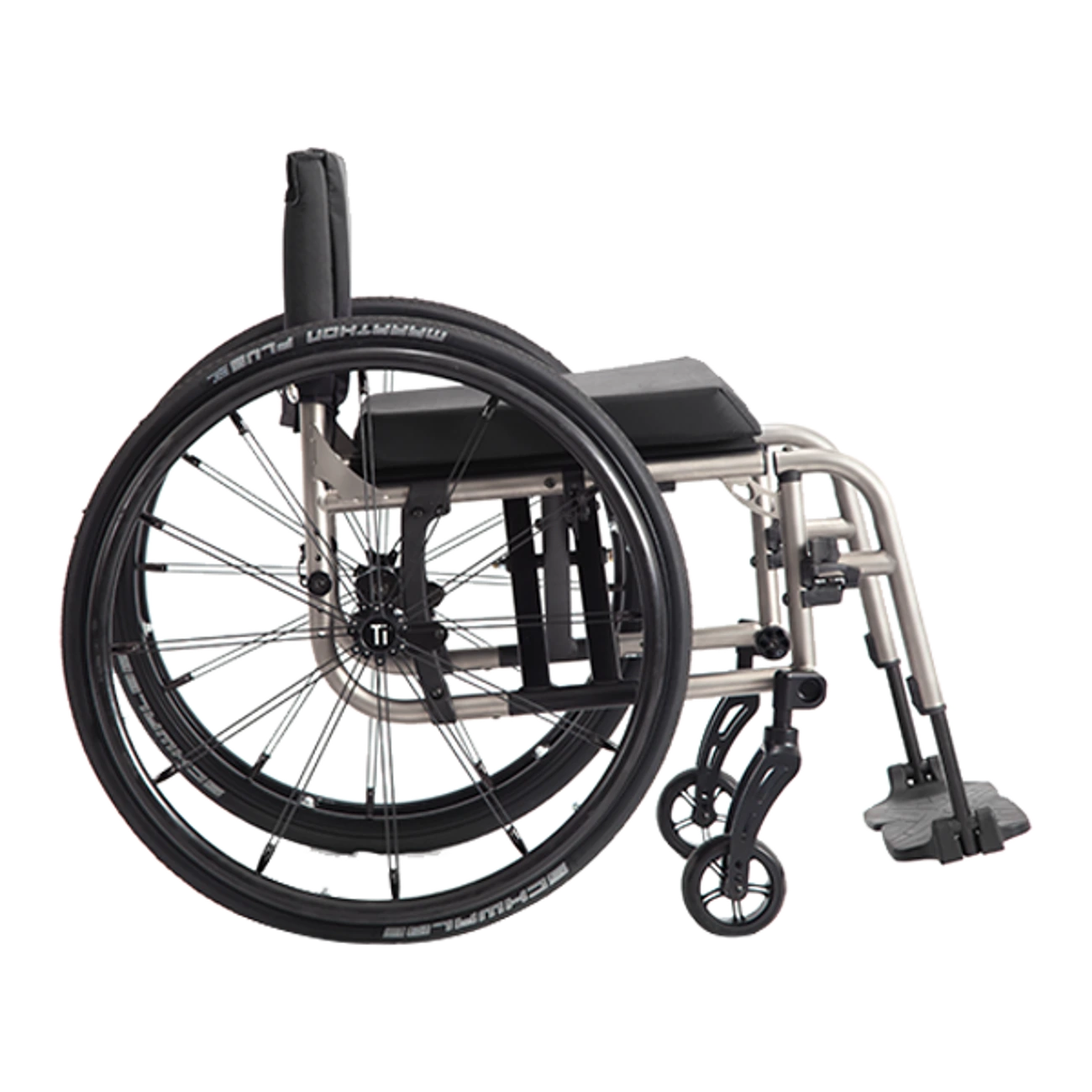

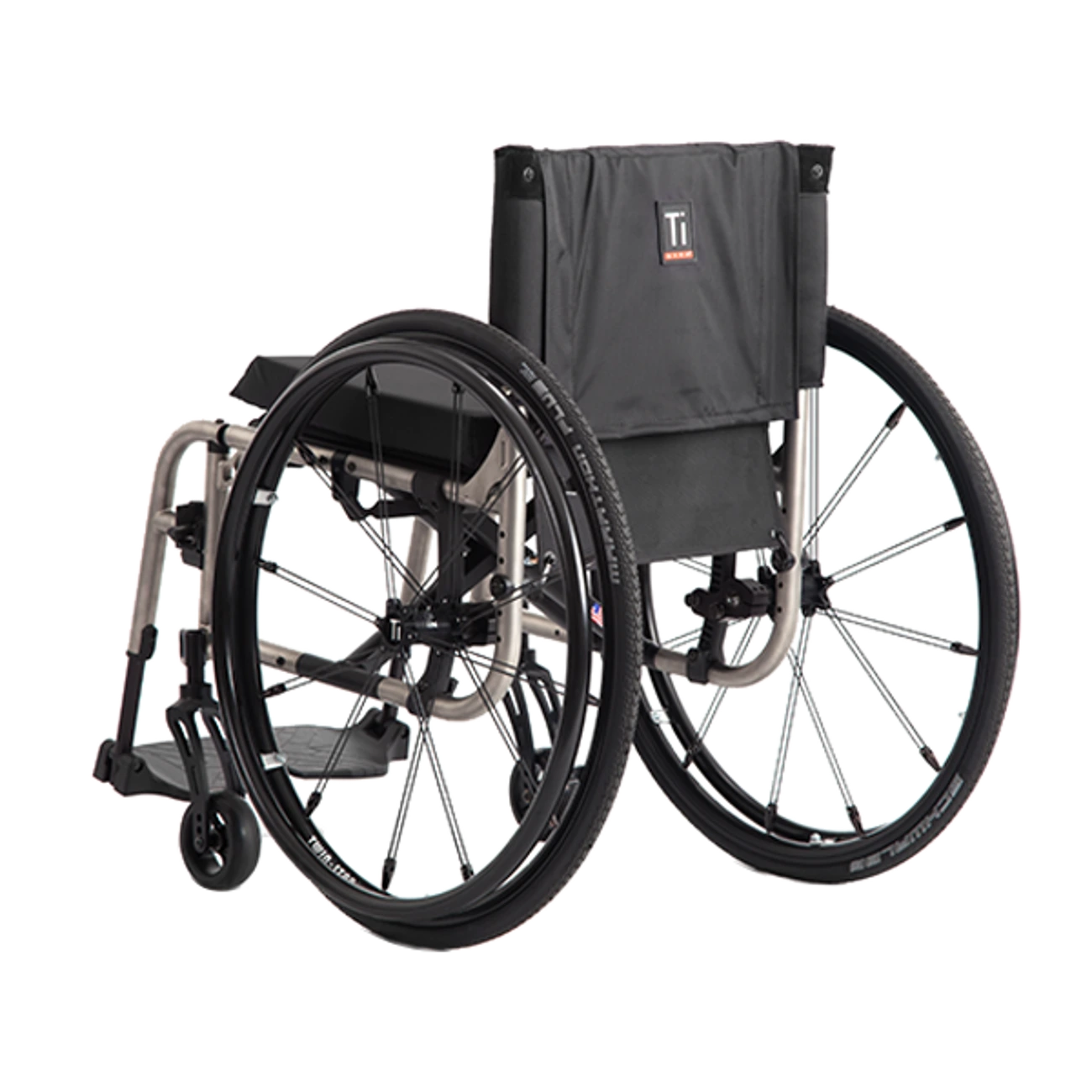

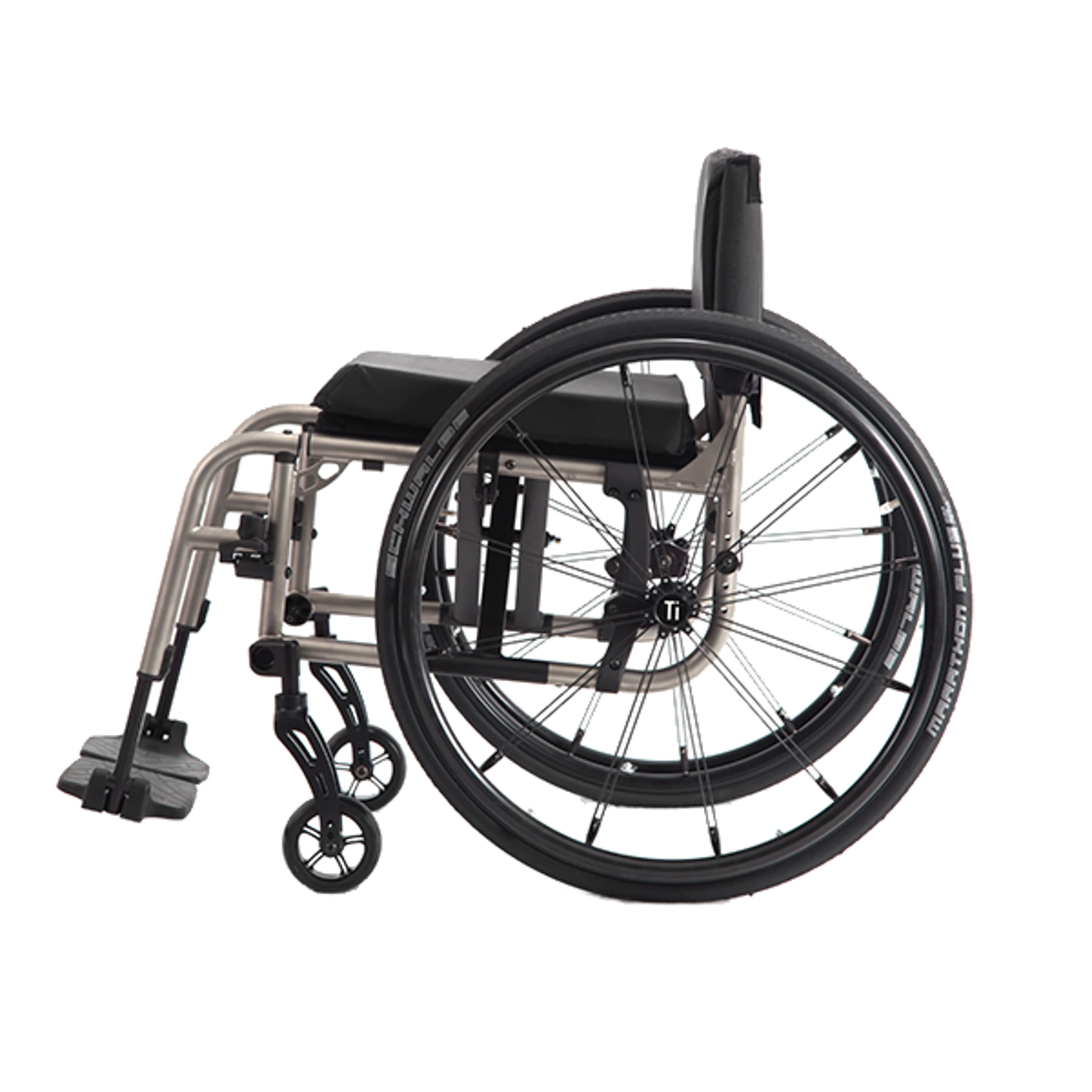

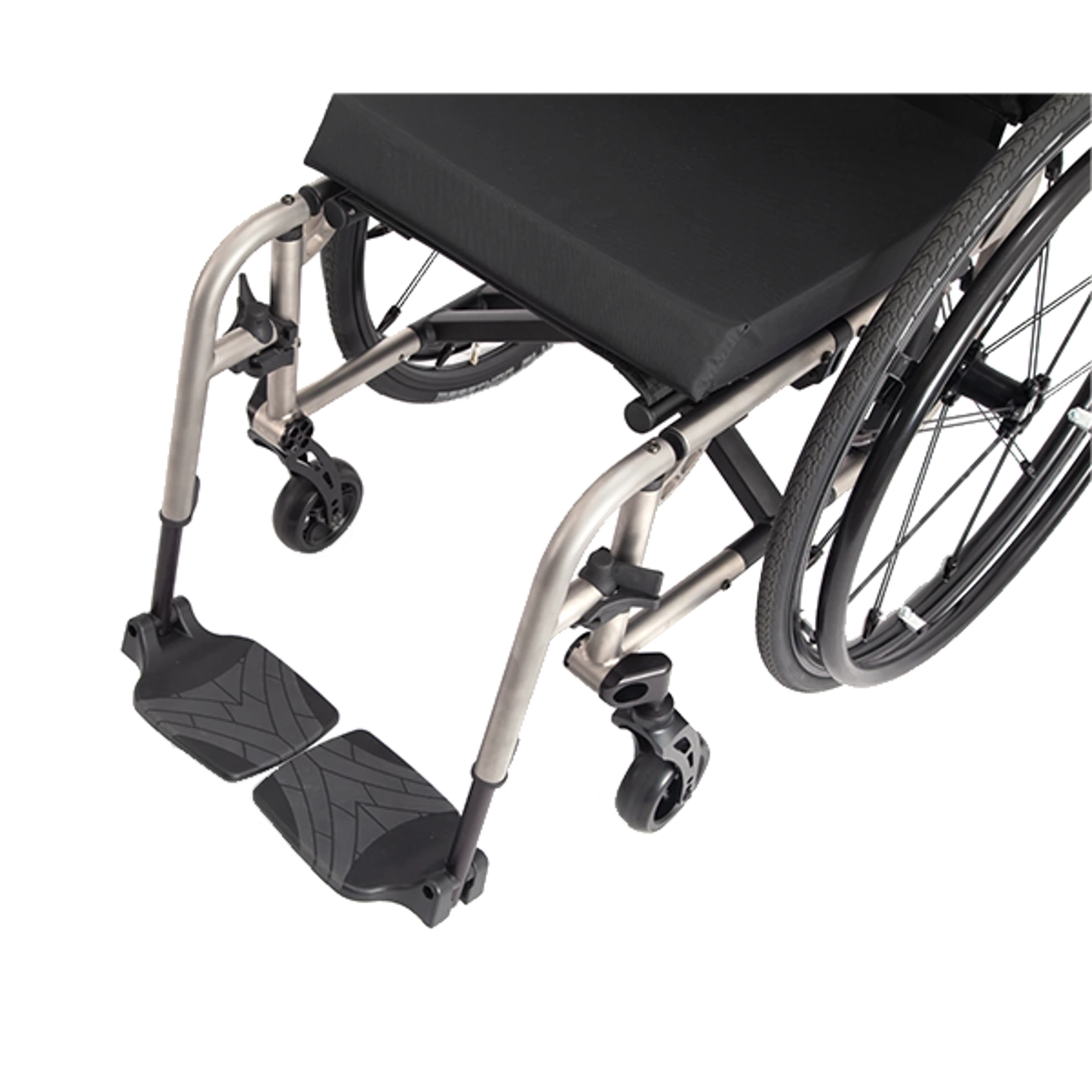

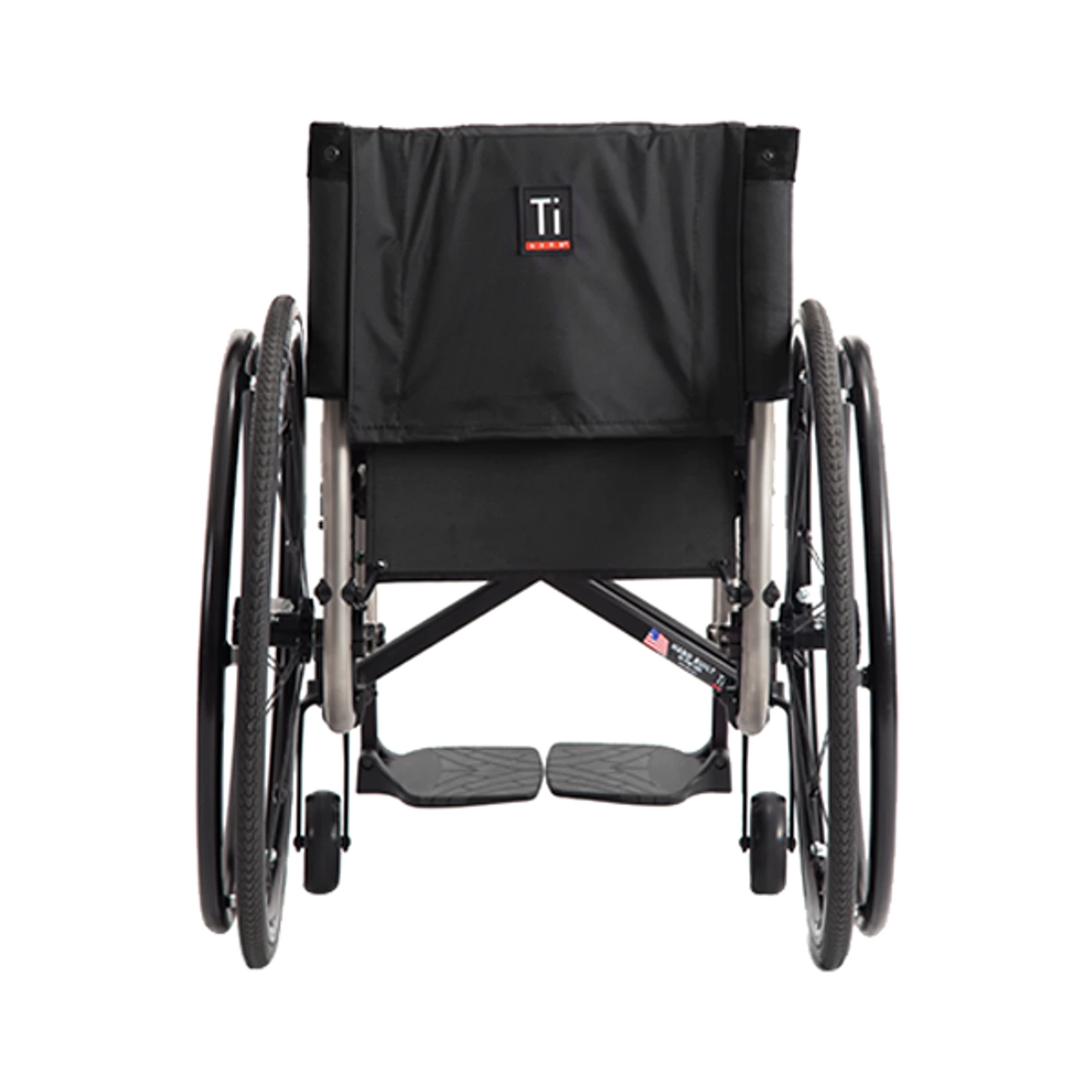

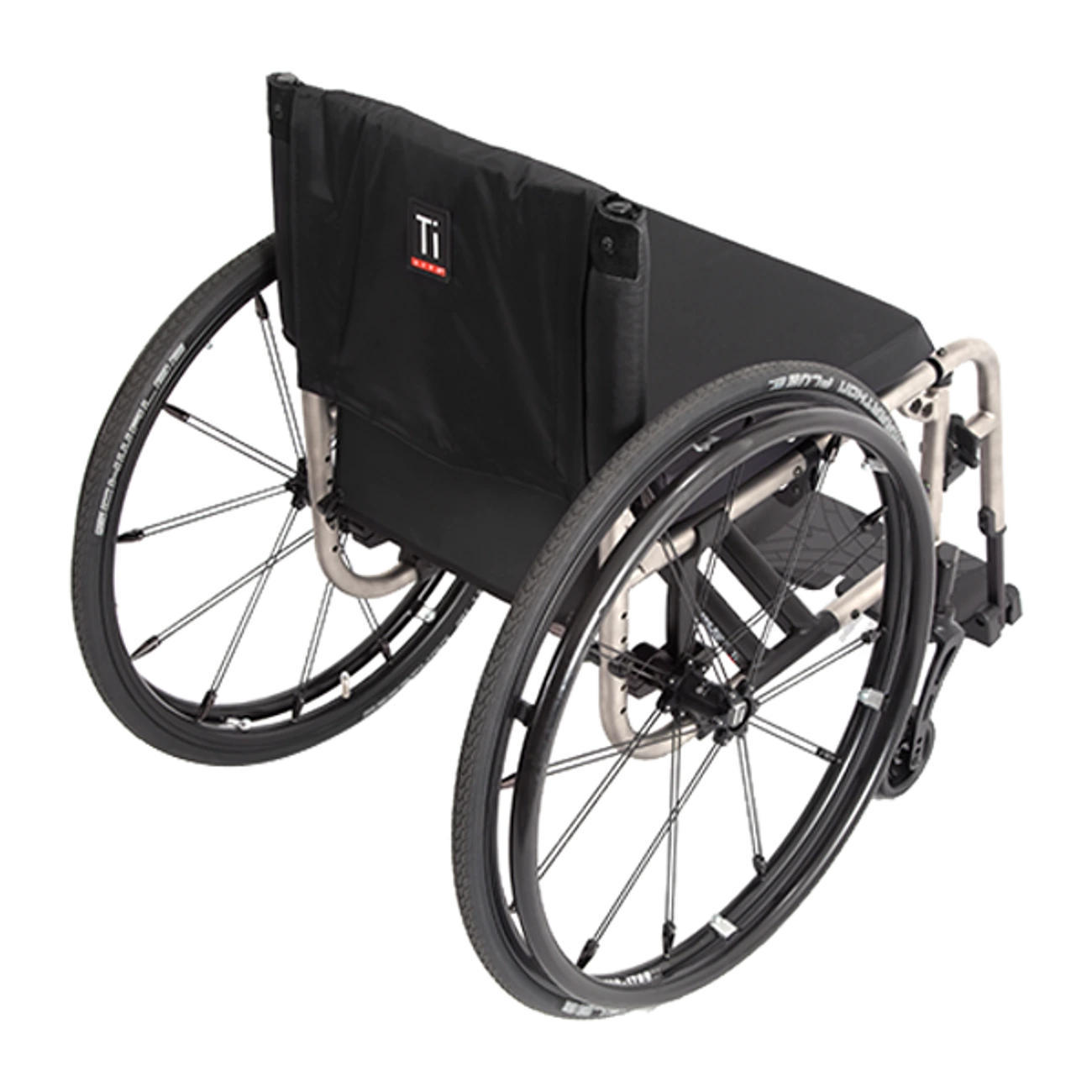

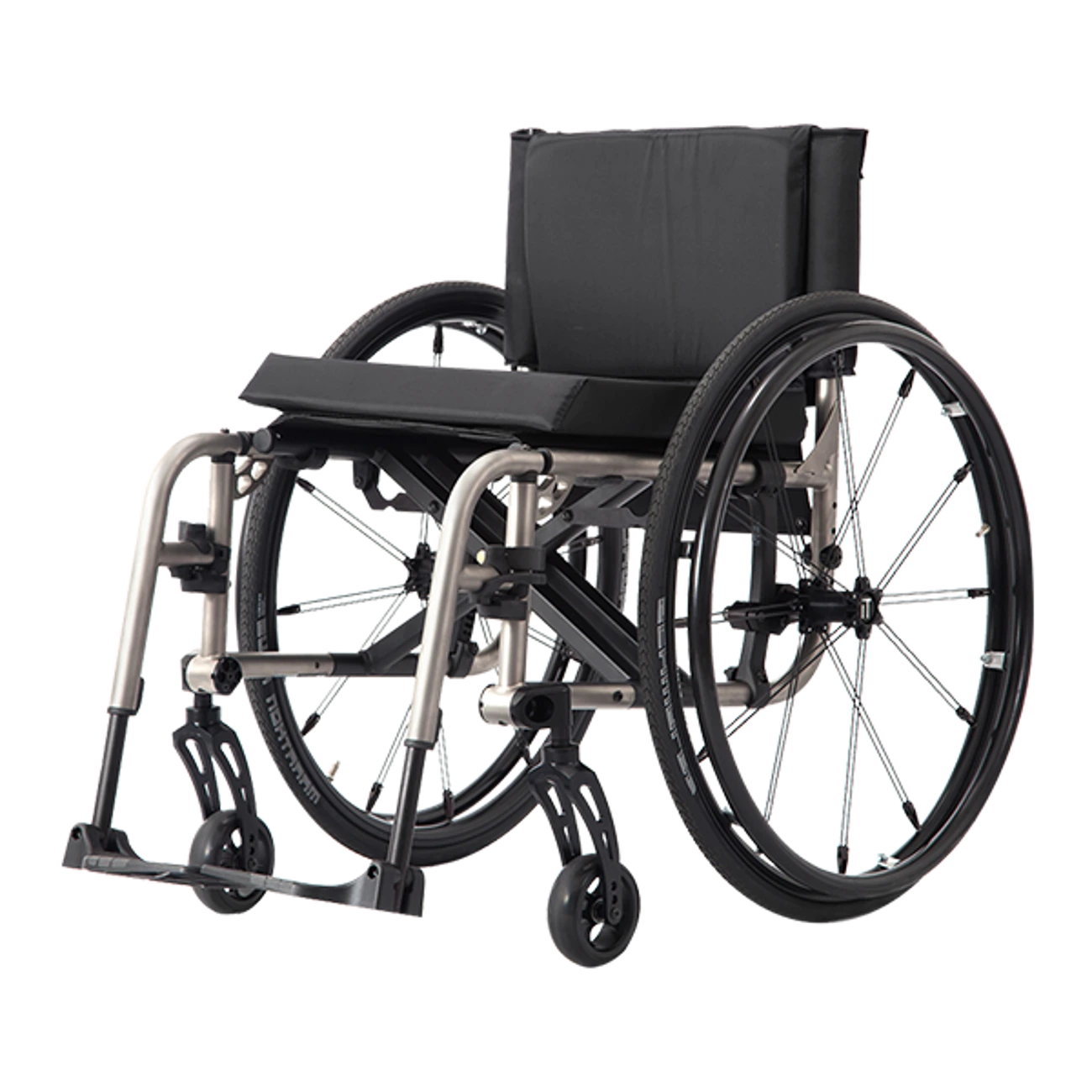

TiLite 2GX
The TiLite 2GX is a premium titanium folding manual wheelchair designed for active users who want the convenience of a folding frame without compromising ride quality, strength or adjustability. Combining a modular folding design with aerospace-grade titanium construction, the 2GX delivers a smooth ride, excellent durability and responsive handling for everyday mobility.
Modular folding frame
The modular box-frame design allows the wheelchair to adapt as user requirements change.
The modular platform supports:
- Seat width and depth growth
- Aftermarket seating systems
- Fixed or swing-away front ends
- Future configuration changes
This flexibility helps maximise the wheelchair’s lifespan while accommodating changing clinical needs.
Tru-Fit adjustment system
TiLite’s Tru-Fit System provides virtually infinite adjustment rather than relying on fixed pre-drilled frame holes.
This enables clinicians to precisely fine-tune the wheelchair while maintaining frame strength and rigidity, resulting in a highly personalised fit.
Folding frame with rigid-chair performance
The side-folding frame is designed to provide compact transport while retaining the ride characteristics of a rigid wheelchair.
Snap-In Seat Saddles securely lock the cross tubes into position, helping minimise unwanted frame movement and maximise propulsion efficiency.
Compact transport
The folding mechanism reduces the overall folded width, making the wheelchair easier to transport and store.
The fluid folding action allows users and carers to fold the wheelchair quickly for vehicle loading or travel.
Precision rear wheel alignment
Machined camber plugs provide accurate rear wheel alignment, helping the wheelchair track consistently while improving propulsion efficiency and handling.
| Seat Width | 12″ – 22″ |
| Seat Depth | 12″-20″ |
| Frame Material | Titanium |
| Transport Weight | Fixed front – 5.9 kg, Swing away – 7 kg |
| Camber | 0°, 2°, 4°, or 6° |
| Front Frame Angle | Fixed Front – 70°, 80°, or 85°, Swing Away – 70°, 80°, 85°, or 90° |
| Seat Back Type | Folding Seat Back |
| Center Of Gravity Adjustment | 6 ” |
| Transit Options | Transport Bracket |
| Weight Limit | Standard – 120 kg, Heavy duty – 159 kg |
