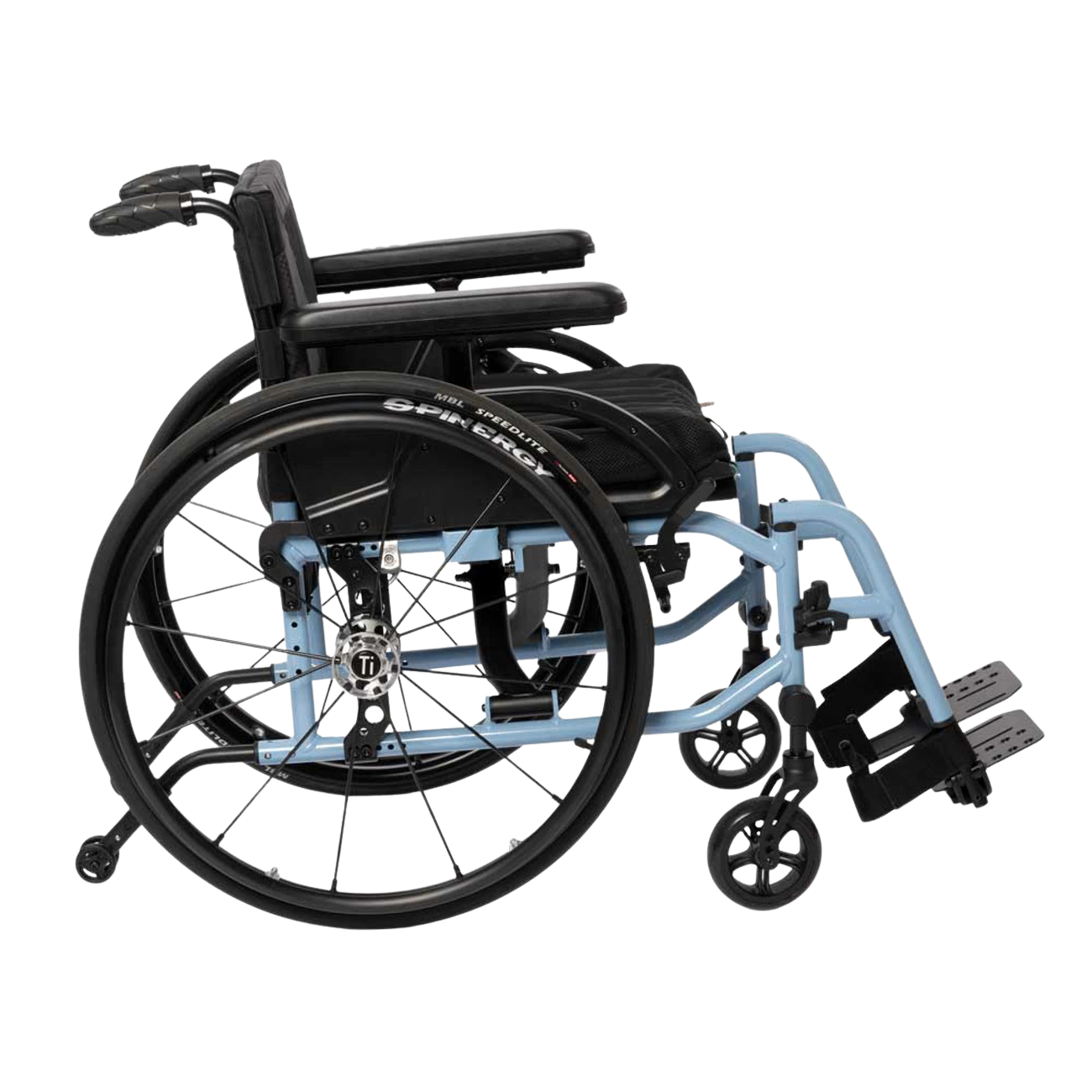

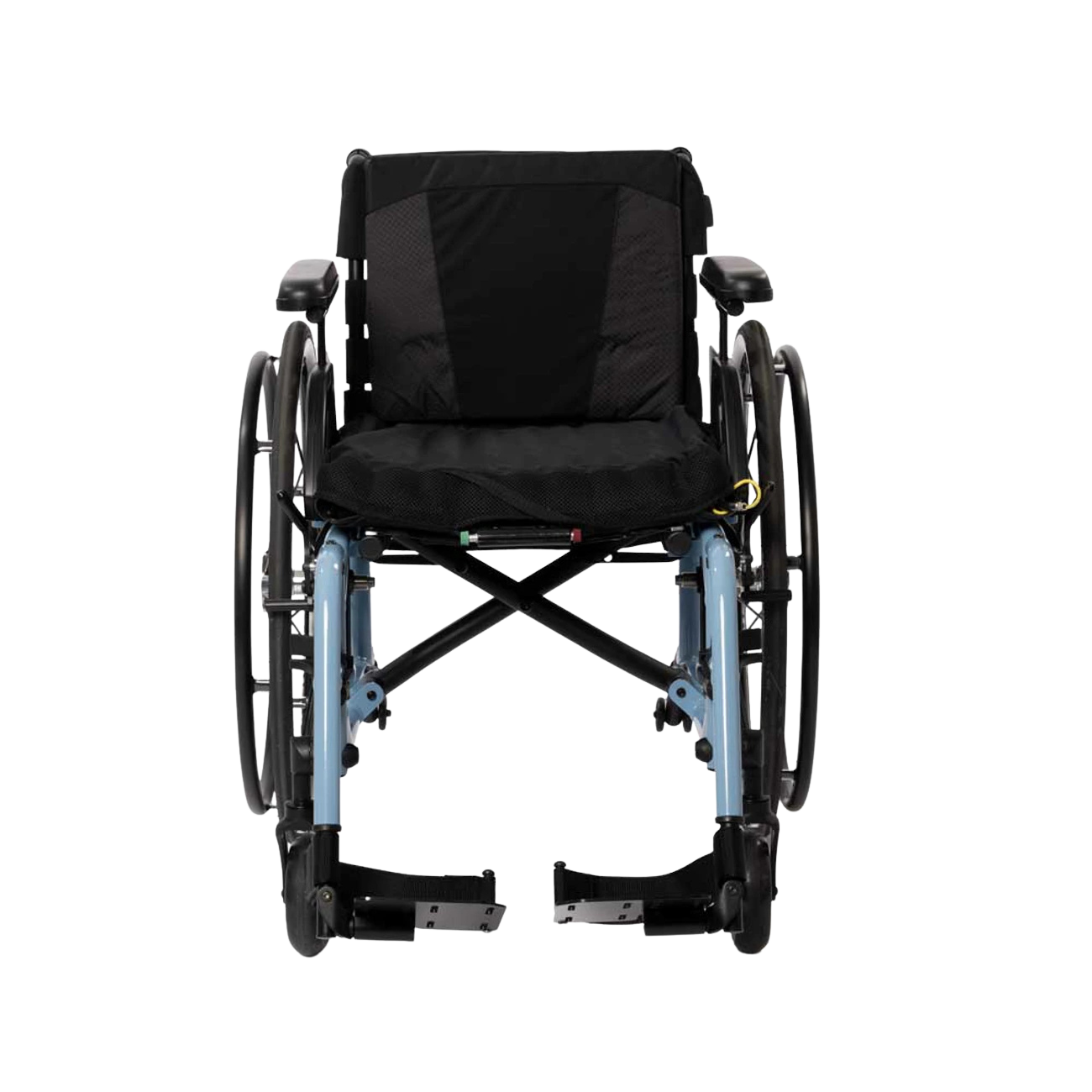

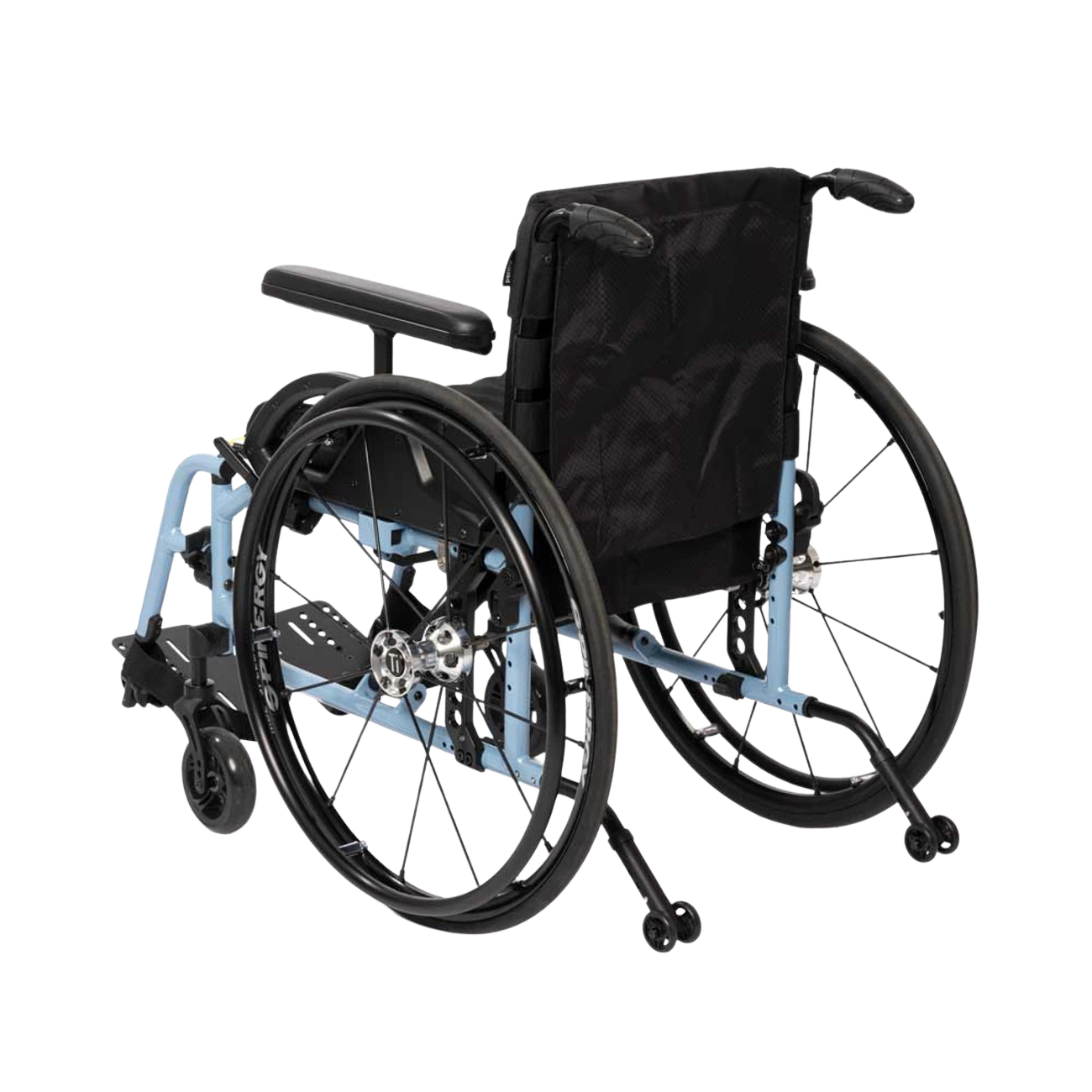

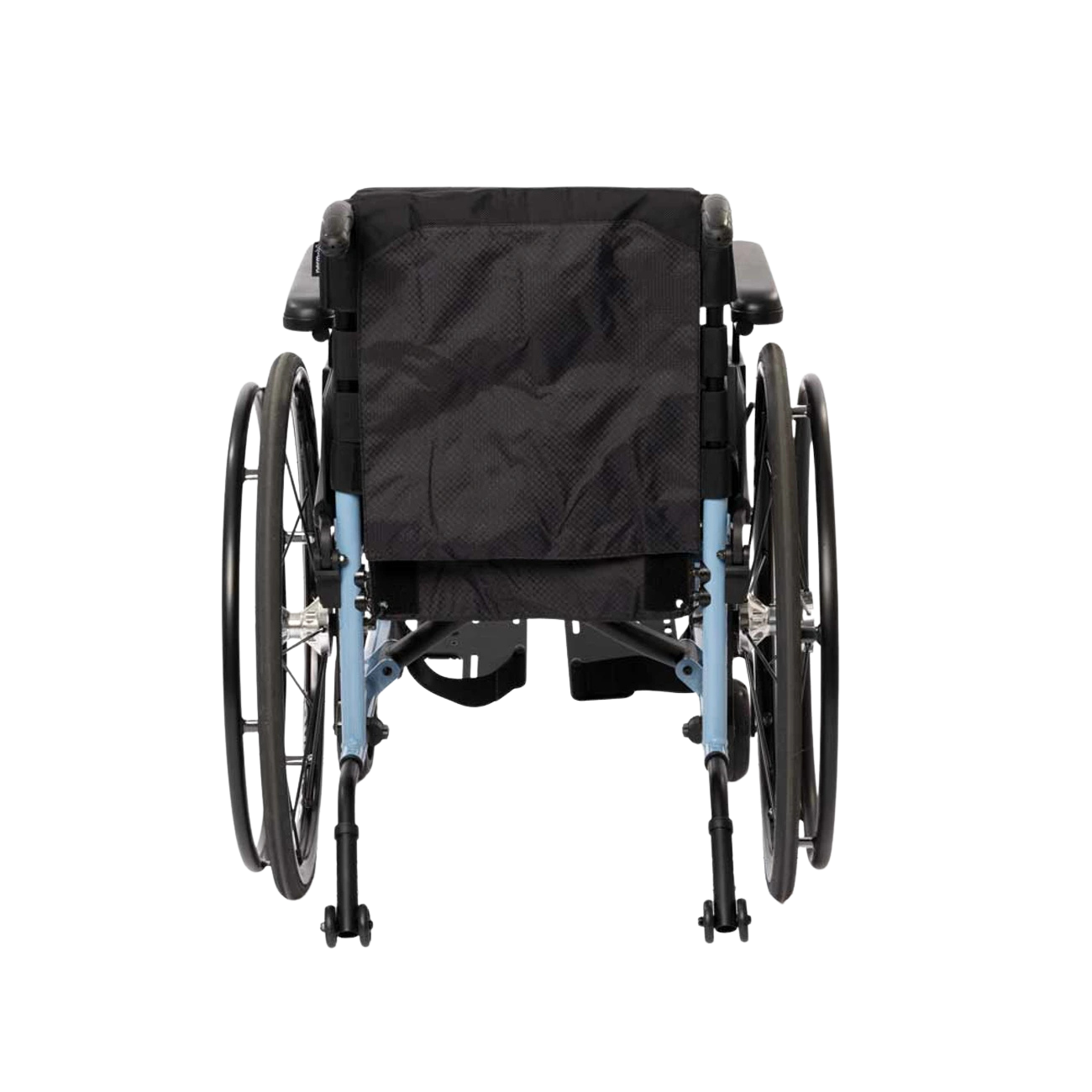

TiLite X
The TiLite X is a lightweight aluminium folding manual wheelchair that combines exceptional portability with the custom fit and performance TiLite is renowned for. Designed for active users who require the convenience of a folding frame without compromising durability or propulsion efficiency, the TiLite X offers over one billion possible configuration combinations to create a wheelchair tailored to individual needs.
Custom-built TiFit design
Manufactured using TiLite’s TiFit technology, every TiLite X is custom-built to suit the user’s measurements and clinical requirements. This precision manufacturing process provides an optimised fit that promotes comfort, efficient propulsion and long-term performance.
Gear Lock castor system
The Gear Lock Castor System allows clinicians to precisely align the front castors using a single tool with adjustments in two-degree increments. This simplifies maintenance and helps optimise wheelchair performance.
Redesigned folding frame
The updated frame incorporates a redesigned cross-brace and single-piece side frame, providing increased rigidity, improved durability and smooth folding performance while maintaining the convenience of a folding wheelchair.
T-style armrests
Optional flip-back or removable T-style armrests feature an ergonomic release lever and on-the-go height adjustment. The welded receiver design helps prevent rotation over time, providing a secure and reliable fit.
Extensive personalisation
The TiLite X can be configured with a wide range of options, including:
- Rear wheel options
- Handrims
- Castors
- Tyres
- Wheel locks
- Folding or fixed backrest options
- Seating and positioning accessories
- Transit options
- Premium frame colours
- Heavy-duty frame option
With more than one billion configuration possibilities, the TiLite X can be tailored to suit a wide range of clinical and lifestyle requirements.
Benefits
- Lightweight folding design for easier transport
- Durable aluminium frame construction
- Precision custom-built fit
- Easy castor alignment and maintenance
- Compact folding frame for vehicle loading and storage
- Wide range of seating and configuration options
- Extensive colour choices
- Designed for active everyday mobility
| Seat Width | 14″ – 22″ |
| Seat Depth | 14″ – 20″ |
| Frame Material | Aluminium |
| Frame Options | Swing Away, Heavy Duty Frame |
| Growable | Optional |
| Transport Weight | 5.4Kg |
| Camber | 0°, 2°, or 4° |
| Front Frame Angle | 70°, 80°, or 85° |
| Seat Back Type | Folding seat back, Fixed seat back |
| Center Of Gravity Adjustment | 4 ” |
| Transit Options | Transit Tie-Down, Transport Bracket |
| Weight Limit | Standard: 136kg. and HD: 158kg. |
