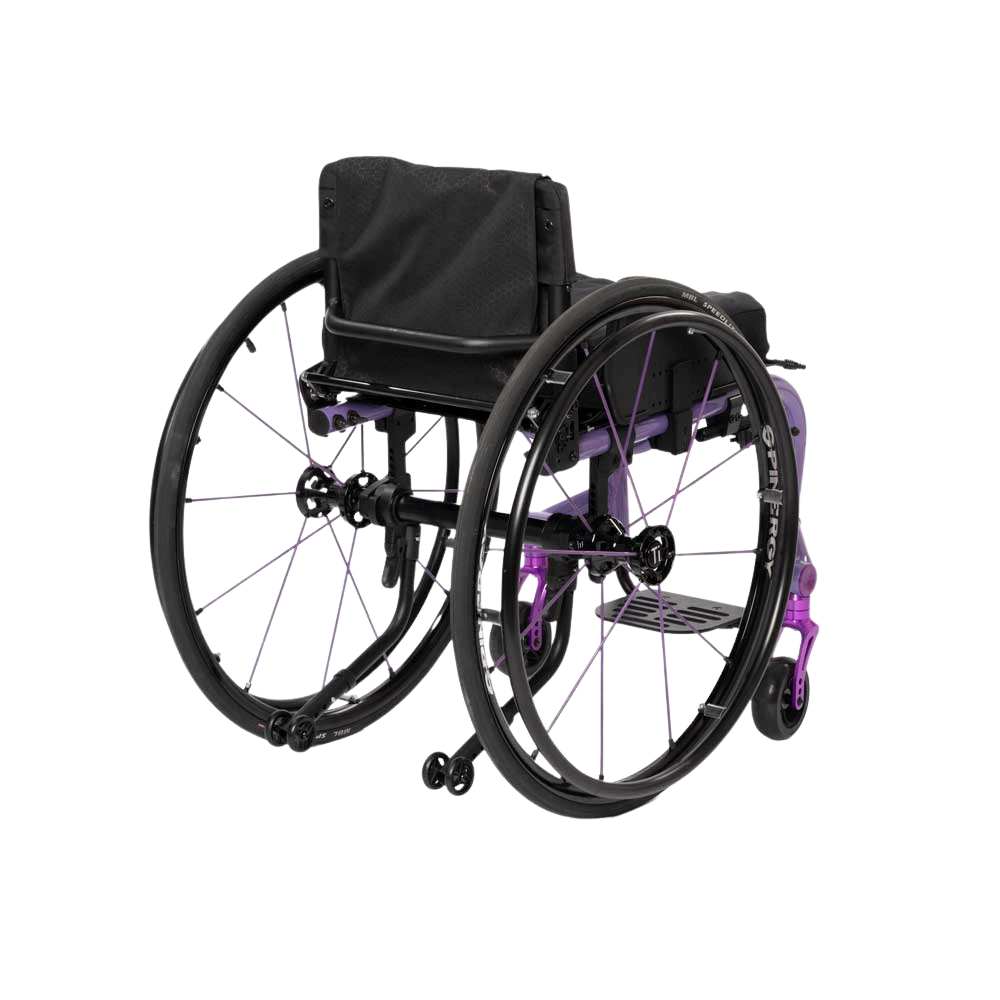

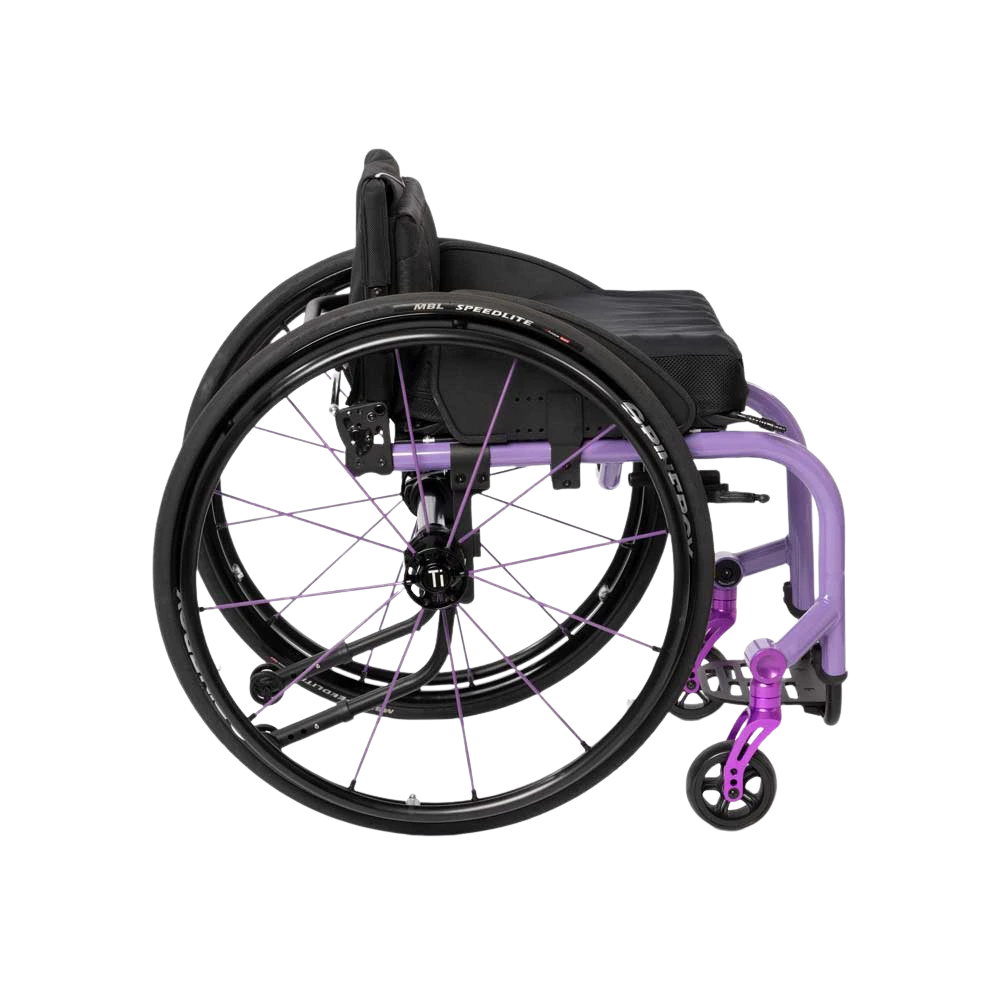

TiLite Z
The TiLite Z is a lightweight aluminium rigid-frame manual wheelchair designed for active users who value performance, durability and everyday efficiency. Built using TiLite’s renowned TiFit manufacturing process, the TiLite Z delivers a precision fit while offering an impressive balance of lightweight construction, strength and configurability.
TiFit precision manufacturing
Every TiLite Z is built using TiFit technology, providing a precise, made-to-measure fit that supports comfort, propulsion efficiency and long-term performance. The rigid frame design minimises flex, helping maximise energy transfer and responsiveness.
Ultra-light transport weight
With a transport weight of approximately 5.1 kg (11.3 lb), the TiLite Z is designed to be easier to lift into vehicles and transport between destinations while maintaining exceptional strength and stability.
Precision Lock adjustment system
The Precision Lock castor adjustment system simplifies fine-tuning and allows clinicians to make accurate adjustments efficiently. This helps optimise wheelchair setup while reducing maintenance time.
Redesigned upholstery
The seat and back upholstery have been redesigned to provide easier tension adjustment, improved durability and simplified cleaning. This allows users and clinicians to maintain appropriate seating support while improving everyday usability.
Extensive personalisation
The TiLite Z offers more than one billion possible configuration combinations, allowing it to be tailored to individual clinical and functional requirements.
Available options include:
- Rear wheel options
- Handrims
- Castors
- Tyres
- Wheel locks
- Seating and positioning accessories
- Folding backrest
- Transit options
- Multiple premium frame colours
- Colour anodised component packages
Benefits
- Lightweight aluminium rigid-frame construction
- Responsive handling and efficient propulsion
- Precision TiFit custom manufacturing
- Ultra-light transport weight
- Easy-to-adjust Precision Lock system
- Durable, easy-to-maintain upholstery
- Extensive configuration and colour options
- Designed for active everyday use
| Seat Width | 12″ -20″ |
| Seat Depth | 12″-20″ |
| Frame Material | Aluminium |
| Transport Weight | 5.1kg |
| Camber | 0°, 2°, 4°, or 6° |
| Front Frame Angle | 75°, 80°, 85°, or 90° |
| Seat Back Type | Folding Seat Back |
| Center Of Gravity Adjustment | 5 ” |
| Transit Options | Transit Tie-Down, Transport Bracket |
| Weight Limit | 124kg |
