TiLite ZRA
The TiLite ZRA is a premium titanium rigid-frame manual wheelchair designed for active users who want lightweight performance, responsive handling and extensive adjustability. Its minimalist mono-tube frame combines strength and durability with a streamlined appearance, while the adjustable axle and backrest systems allow the wheelchair to be refined around the user’s posture, propulsion style and mobility goals.
Adjustable mono-tube frame

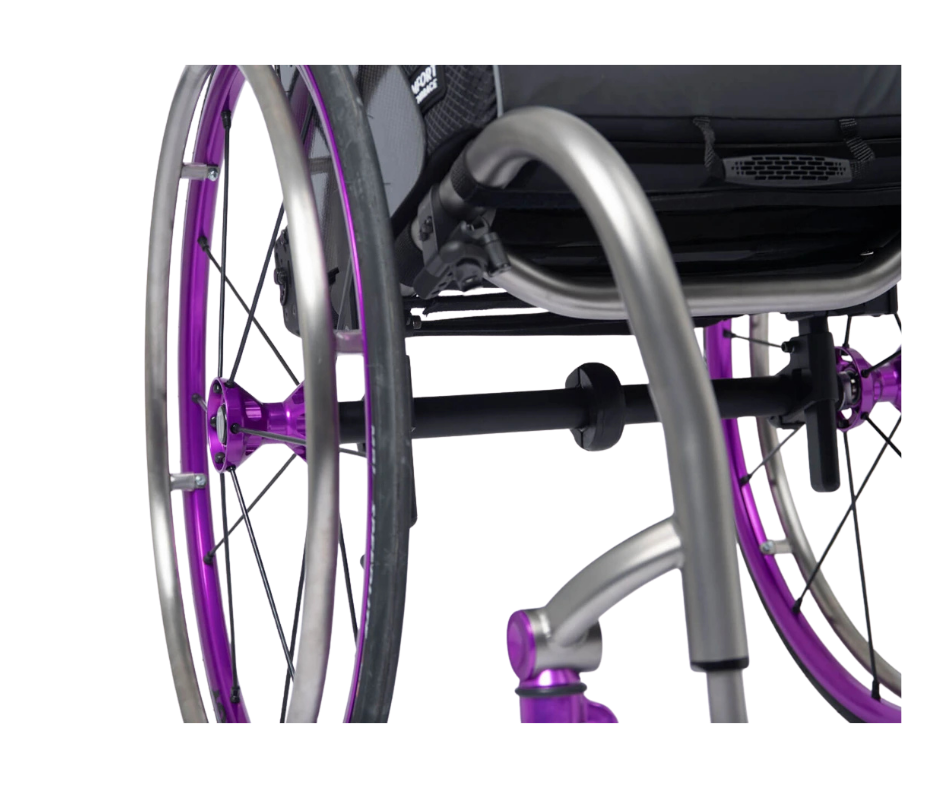

The ZRA features a clean mono-tube frame constructed from 1.25-inch titanium tubing. This streamlined frame offers excellent transportability and can be positioned more easily on a vehicle seat during loading.

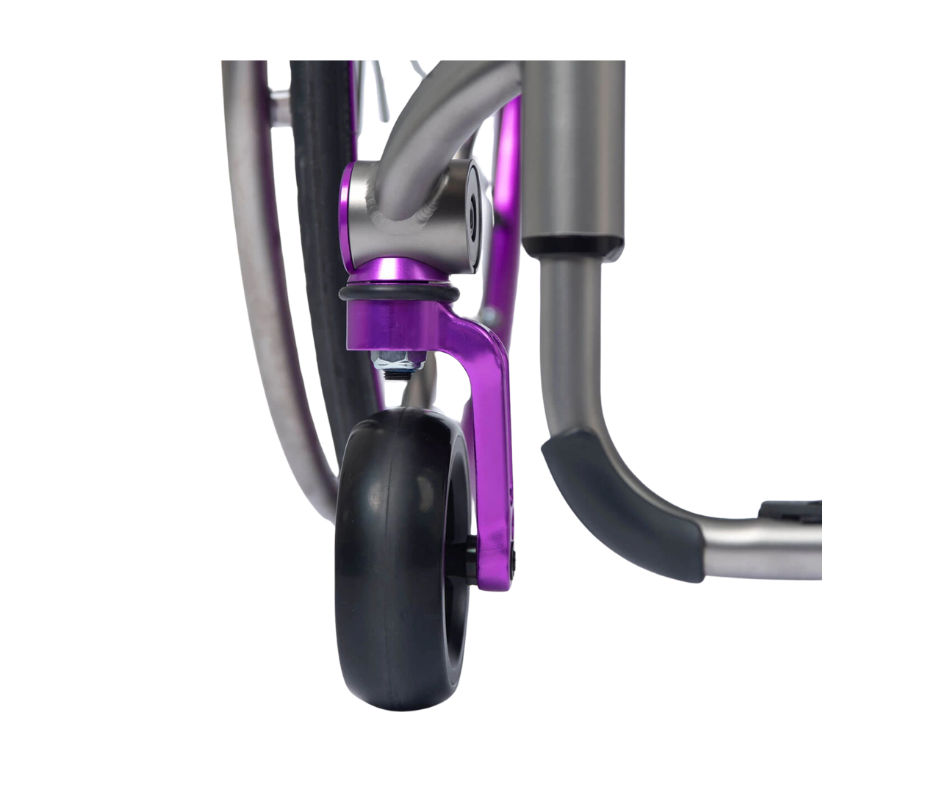

Curved, ovalised castor arms complete the minimalist design while supporting a compact and contemporary appearance.
Full adjustability
The TiLite ZRA incorporates Permobil’s Precision Lock adjustment technology, allowing clinicians to refine the castor alignment and backrest angle.
These adjustments help create a more precise wheelchair setup and support smooth, efficient handling.
Adjustable centre of gravity
The wheelchair provides up to 6 inches of centre-of-gravity adjustment, allowing its balance and responsiveness to be tailored to the user.
Moving the rear wheels forward can create a more responsive setup, while positioning them further rearward can provide increased stability. The final position should be selected according to the user’s mobility skills, posture and clinical requirements.
Responsive rigid-frame performance
Rigid-frame wheelchairs use fewer moving components than folding wheelchairs, helping reduce unnecessary frame movement and energy loss.
The ZRA’s rigid titanium construction supports efficient propulsion, responsive steering and precise manoeuvrability for active everyday use.
Configurable seating geometry
The TiLite ZRA can be configured with a range of front frame angles, seat dimensions, camber settings and seating components.
Available options include:
- Front frame angles from 70° to 90°
- Camber settings from 0° to 12°
- Front seat heights from 16″ to 21″
- Seat widths from 12.5″ to 20″
- Adjustable backrest and axle positioning
- Standard and heavy-duty frame configurations
Folding backrest
The adjustable folding backrest helps create a compact transport configuration while retaining the positioning flexibility needed for an individual setup.
Backrest components and upholstery can be selected to suit the user’s comfort, posture and functional requirements.
Transit option
A transit tie-down option is available for the TiLite ZRA. Transport suitability depends on the selected configuration and applicable vehicle restraint requirements.
| Seat Width | 10″ – 20″ |
| Seat Depth | 10″-20″ |
| Frame Material | Titanium |
| Transport Weight | 5.1Kg |
| Camber | 0°, 2°, 4°, 6°, 8° or 12° |
| Frant Frame Angle | 70°, 75°, 80°, 85°, or 90° |
| Centre of Gravity Adjustment | 6″ |
| Transit Options | Transit Tie-Down |
| Front Seat Height Range | 16″ – 21″ |
| Rear Seat Height Range | 12.5″ – 20″ |
| Weight Limit | Standard: 120 kg / Heavy duty: 136 kg |
