Prescription only
Ki Mobility Catalyst 4C
The Catalyst 4 & 4C are the lightest most durable and energy efficient K0004 folders on the market today.
Easy to Transport, Easy to Push.
"Catalyst Difference" design features to allow you to fit, adjust and ride with confidence.
Customise to your neeeds
Personalise with over 20 colour options

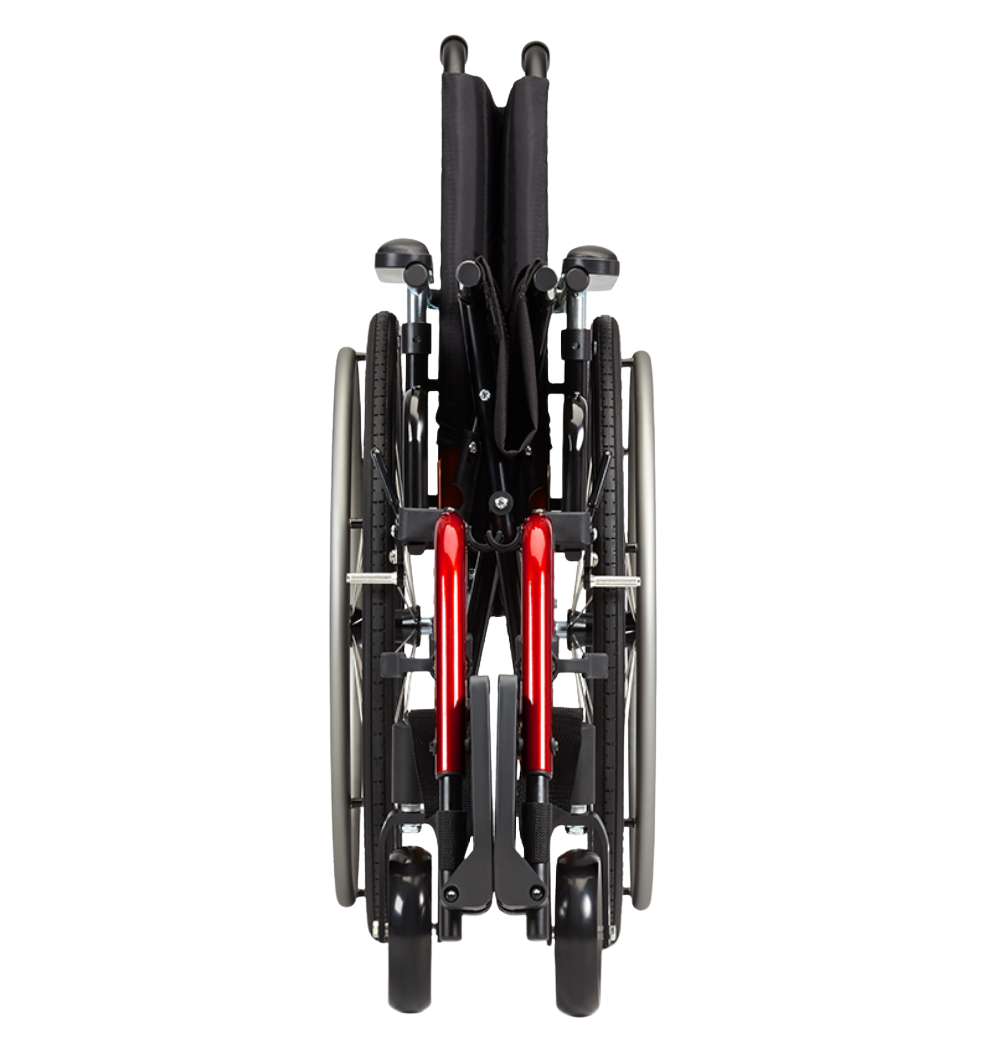

Transport with ease
Description
The Catalyst Difference
Catalyst 4 & 4C both take advantage of all of the “Catalyst Difference”?design features to allow you to fit, adjust and ride with confidence. A defining characteristic of each chair is its axle plate which we will highlight below.
Offset Axle Plate
The Catalyst 4 series axle is mounted less than 1/2″ forward to traditional axle positions. The simple axle plate design offers vertical adjustments of the axle in five positions. It can also be reversed to gain greater rearward stability.
Front Frame Styles
Catalyst 4 & 4C offer the option of a swing away front end featuring our patented footrests or 70° or 80° fixed frames. The swing away hangers come in 4 bends (60°, 70°, 80° & 90°) are light and easy to use and so strong we offer a lifetime warranty.
Spoke
Ki standard spoke uses 30 radial spokes to provide a stiff and durable wheel.
Mag
Exclusive to Ki, the magnesium Maxx Mag wheel creates a sleek, modernized look while providing greater stiffness and lower weight than classic nylon composite mag wheels.
Maxx Mag wheels are available in 20″, 22″ and 24″.
Specifications
*16″x16″ Frame, 5″x1″ Poly Casters, Height Adjustable T-Arm Receivers. Footrest and Rear Wheels removed.
| Specification | Measurement |
| Transport Weight * | 7.3 kg |
| Standard Weight | 11.8 kg |
| Seat Width | 14″ – 22″ |
| Seat Depth | 14″ – 20″ |
| Front Seat Height | 13.5″ – 21″ |
| Catalyst 4 Rear Seat Height | 12.5″ – 19″ |
| Catalyst 4C Rear Seat Height | 12.5″ – 20″ |
| Top Frame Tubing Size | 1″ |
| Bottom Frame Tubing Size | 1 1/8″ |
| Weight Capacity | 113 kg |
| Weight Capacity HD | 158 kg |
