Motion Composites Apex

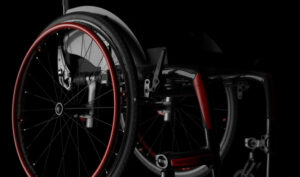

The APEX Carbon wheelchair by Motion Composites belongs to a new era of rigid wheelchairs. A balanced blend of technology and design, it is the ultimate in lightness, durability, flexibility and style.

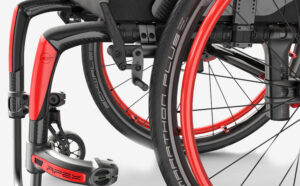

A Lightness That Redefines Preconceived Notions Of Rigid Wheelchairs

Made of the industry’s most advanced materials, the APEX Carbon wheelchair is truly state-of-the-art. The use of carbon fiber makes it incredibly light, while the canteliver frame provides optimal comfort by absorbing shocks and vibrations. A transport weight of 9.8 lbs ensuring agile transportation and movement for well-being at all times.

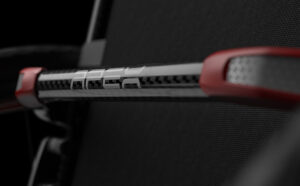

Optimized Handling

The rigidizing bar unique to the APEX model maximizes stability while preserving reactivity. This sturdiness reduces lateral movement and offers optimal propulsion for greater mobility.
Bold, Modern And Refined Design

While technology and function are important, so are design and aesthetics. Each detail of the APEX Carbon chair was carefully considered and thoughtfully designed to create a head-turning chair that challenges all wheelchair stereotypes.
The Industry’s Most Perfected Materials

Carbon fiber has the unique quality of being one of the strongest, yet lightest materials on earth. It also has superior fatigue resistance and can withstand extreme temperatures. This ensures exceptional durability for a chair that will serve you for many years to come.

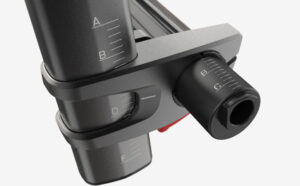

Infinitely Adjustable

APEX Carbon wheelchair offers a number of settings for a completely customized experience. Fully modular, the back angle, seat-to-floor height and rear wheel positions can all be adjusted for your comfort. Laser-etched markings make it easier to adjust key components and specify exact positioning.

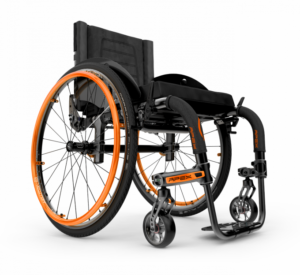

Apex A (Aluminum frame option)

The bold design and innovative approach behind the APEX Aluminum have redefined perceptions of rigid wheelchairs. The triple-butted aluminum and strategic touch of carbon fiber strike a perfect balance making this chair an example of modernity and lightness.
The APEX A combines the advantages of triple-butted aluminum with those of carbon fiber for unbeatable strength and lightness. The result is a wheelchair that is easy to handle and transport with an ease of propulsion that makes it easier to get where you want to go.
| Specification | Measurement |
| Seat width | 12″ to 20″ |
| Seat depth | 12″ to 20″ |
| Front seat to floor | 14″ to 21″ |
| Rear seat to floor | 14″ to 20″ |
| Back height | 9″ to 21″ |
| Armrest Height | 6″ to 14″ |
| Front frame angle | 70°, 75°, 80°, 85°, 90° |
| Back angle | 80° to 101° |
| Wheel camber | 0°, 2°, 4°, 6°, 8° |
| Center of gravity | 0″ to 6″ |
| Overall width | 18″ min. 31″ max. |
| Weight Limit | 120 kg |
| Standard | AS/NZS 3695.1:2011 |
