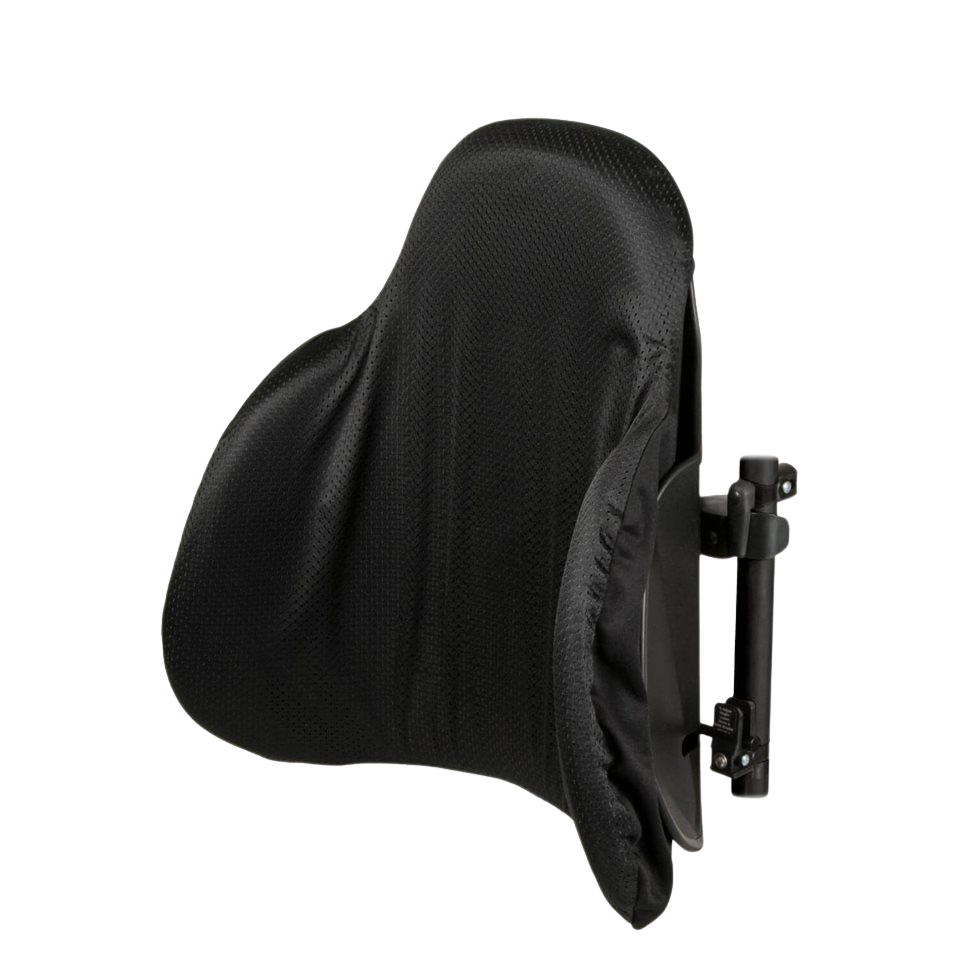

JAY J2

The JAY J2 Series wheelchair back is designed to provide posterior and lateral pelvic stability along with enhanced trunk support.

Tried and true wheelchair back for mild to involved needs
Jay 2 are lightweight and angle adjustable for easy installation, fitting and removal to fold the wheelchair.
Contoured Shell and Foam
Tall and Deep Contour Options
Optional Lateral Thoracic Supports
Description

The JAY J2 Wheelchair Backrest facilitates thoracic extension. It has an angle adjustability of up to 15? and an optional spinal fluid pad insert that provides pressure and shear reduction.

Contoured Shell and Foam

The J2 back features a mildly curved shell for posterior pelvic and mild lateral thoracic stability. Its contoured foam insert distributes pressure over a wider area to increase comfort and reduce the risk of skin breakdown.

Optional Lateral Thoracic Supports

For personalised support, the J2 back offers optional lateral thoracic pads. Available with either a curved or flat shape and fixed or swing-away hardware, lateral thoracic supports accommodate existing and help prevent the development of asymmetrical postures.

Tall and Deep Contour Options

For clients with longer torso lengths, the J2 Tall back’s 23″ height provides superior support. For maximum lateral pelvic stability, the J2 Deep Contour features 6″ of built-in support.

AirExchange Cover

The J2’s AirExchange cover promotes airflow and dissipates heat and moisture, keeping the client clean and dry.

Specifications
Specification

Measurement

Width

Standard: 12 – 20″

Deep Contour: 14 – 20″

Height

Standard: 12.5 – 16.5″

Deep Contour: 17 – 20″

Tall: 21″ to 23″

Maximum User Weight

113 kg

Cover Type

Air Exchange

Standards

ARTG 145061
