Spex Standard Lateral Head Support

One-piece lateral head support solution for moderate head positioning needs.

The Standard Lateral Head Support, has been designed to meet moderate head positioning needs. It comprises a posterior head pad with suboccipital support to promote head positioning while the head rotates.  A clever ear cut-out detail stays comfortable when resting at different positions on the pad.
  • Description
  • Specification
  • Downloads

Spex Head Support pads are constructed from an internal aluminium shell covered by an injection moulded polyurethane foam to ensure smooth and comfortable support surface. A soft memory foam overlay allows for pressure reduction even for clients with high tone patterns. The family of head support shapes have been geometrically and biomechanically designed to give greater support and stability for head positioning for wheelchair users. Along with the versatile Spex Stylo hardware, it’s possible to accommodate an extensive range of head positioning requirements.

Previously known as the Comfi Standard/Extended Head Support.

The Standard Lateral Support is available in Paediatric and Adult sizes and also available in Extended Lateral versions, which are 4cm longer in lateral extension.



Weight

The following weights do not include the Ball Mount or Stylo Mechanisms.

StyleTotal Weight
Standard585g
Paediatric Standard405g



Dimensions

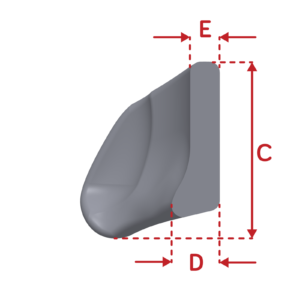

StyleCodeWidth (A)Depth (B)Height (C)Bottom
Thickness (D)
Top
Thickness (E)
Edge Thickness
Standard
Lateral
1275-0043-000250mm145mm170mm60mm45mmBottom edge (F): 60mm
Top Edge (G): 30mm
Paediatric
Standard
Lateral
1275-0041-000220mm180mm150mm50mm40mmBottom Edge (F): 55mm
Top Edge (G): 30mm
