Product Code: AR - RAZ-SP599

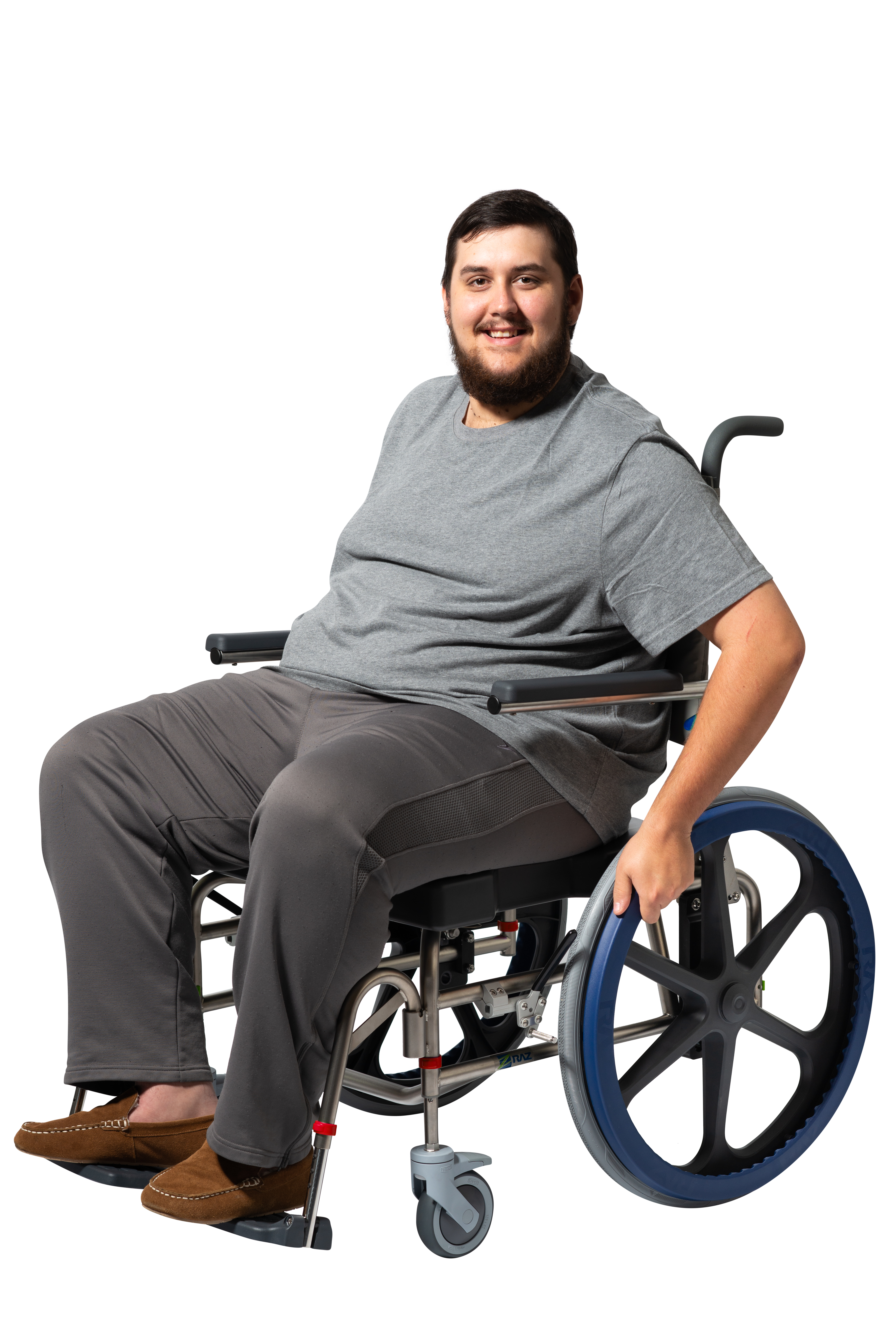

The RAZ-SP600 Rehab Shower Commode Chair is a bathroom aid featuring a multi-position back with centre of gravity adjustment with 7.5cm of height adjustment.

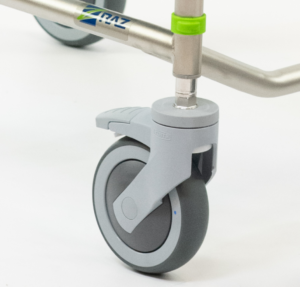

The RAZ-SP600 Rehab Shower Commode Chair is a bathroom aid features a multi-position back with centre of gravity adjustment with 7.5cm of height adjustment. The RAZ-SP600 features 61cm rear wheels and 12.5cm locking castors for users up to 180kg and 15cm locking castors for users over 272kg. The centre of gravity adjustment and moulded seat allows for the pelvis to be perfectly aligned for a comfortable fit. Flip-up padded armrests provide extra support and adjustable flip-up footrests swing in and out easily and can be removed for transfering or cleaning. The injection-moulded commode pan also features a lid for splash and odour control.

The Raz-SP600 rehab shower commode chair features the Multi-Position Back (with center of gravity adjustment) and comes standard with 3” of height adjustment, an adjustable-tension fabric backrest, 24” rear wheels, 5” dual-locking casters for users up to 400 lbs and 6″ dual-locking casters for users over 400 lbs (up to 600 lbs. Maximum), flip-up padded armrests, a commode pan, and a large molded soft foam seat. The electro-polished stainless steel frame is engineered for heavy-duty use and easy access for the user or attendant.

Moulded Seat

  • contoured for pressure reduction and pelvic stability
  • soft integral-skin foam for comfort and durability
  • available with an open front for access
  • 23”Wx18”D

Ischial Pelvic Alignment System

  • provides 2” of fore/aft adjustment so the seat can be aligned with the pelvis
  • allows centering of the aperture (opening) around the users’ ITs
  • seat locks in place for transfers
  • removes easily for cleaning

Multi-Position Back

  • Includes 20” high back upholstery
  • Can be set at 90 degrees or 95 degrees
  • Flip-back arms (optional locking)
  • Can be position fore/aft on frame so that client’s center of mass can be optimally position in the chair

Adjustable Footrests

  • removable for transfers and cleaning
  • swing in and out easily
  • flip-up footplate
  • adjust for leg length without tools
  • available in regular length 16″-20½” and extended length 18″-22½”

Fixed Back

  • includes adjustable tension fabric back upholstery
  • includes flip-up, angle-adjustable arms
  • available in 17” and 20” back heights
  • locking armrest upgrade available [Z710]

Adjustable Tension Fabric Back

  • polyester fabric for durability and comfort against skin
  • provides individualized trunk support for optimal positioning and comfort
  • removable for machine washing
  • available in a 20” back height
  • straps are double stitched for heavy-duty use

Commode Pan

  • Injection-molded pan is designed for function
  • Includes a lid for splash and odor control
  • Wide handle angled at 45 degrees provides better ergonomics
  • Sloped front of pan moves contents toward the handle to reduce offset load, thereby making it easier to carry
  • Receiver brackets under seat are visible from the rear of the chair, making it easier to slide the pan into place
  • Fits in a standard autoclave and Arjo Tornado Washer

Type Footrest Lengths Seat Dimensions Backrest Height
Bathroom Aid 40.5-52cm or 45-57cm W58cm x D45cm 43cm or 51cm
