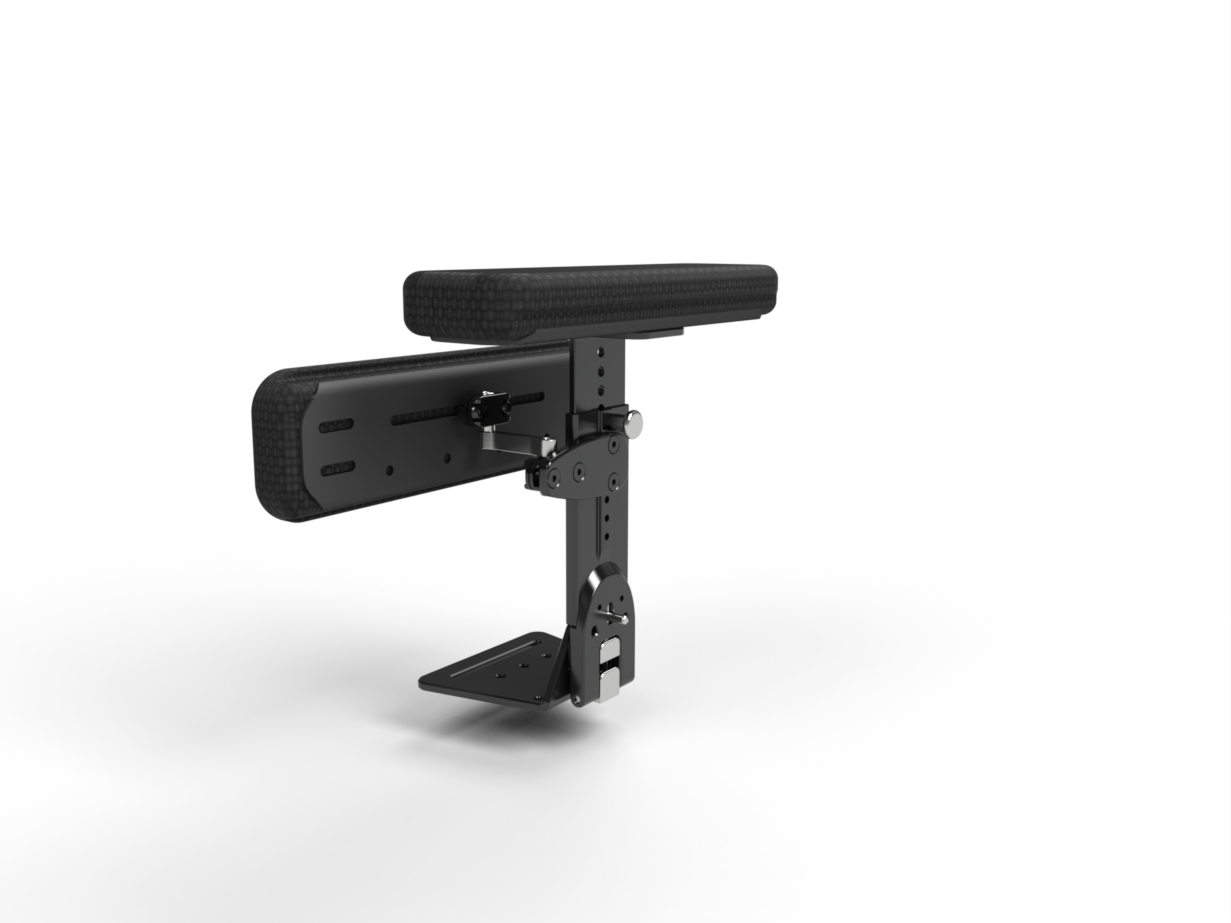

Dreamline Hip & Thigh Guides
Dreamline Hip & Thigh Guides are modular supports designed to improve hip and thigh alignment in wheelchair seating, enhancing stability, posture, and pelvic positioning.
Like all Dreamline Supports, Dreamline Hip Guides have a firm closed cell foam inner with a soft immersive overlay of Sunmate visco-elastic foam & offer full length support to the thighs. Dreamline Swing-down / removable hardware provides multiple options for transfers. The brackets are adjustable in height, depth, width & by using the pivot style, angle positioning is also available.
Full length Hip guides provide increased support leverage to the femur. A soft overlay of Sunmate Visco-elastic foam provides protection for bony prominences such as hip subluxation. Dreamline Hip Guides are fully adjustable for asymmetrical postures such as windsweeping. External hip guides can improve transfer accuracy by providing a width guide space for the individual helping ensure the pelvis is well positioned. Washable neoprene covers are water resistant and can help prevent fluids & odours permeating the foam inner.
Key Features
-
Customisable lateral and medial support – suits individual clinical needs
-
Adjustable width, angle, and height – for optimal positioning
-
Durable, pressure-relieving pads – improves comfort and skin integrity
-
Compatible with Dreamline seating – seamless integration with backrests and cushions
-
Swing-away or fixed hardware options – flexibility for transfers and daily use
-
Supports midline sitting posture – prevents hip rotation and leg scissoring
-
Available in adult and paediatric sizes – inclusive for all age groups
| Feature | Specification |
| Max User Weight | 180kg |
| Pressure redistribution | Sunmate Visco-elastic Foam |
| Covers | Neoprene – 4-way stretch water-resistant & machine washable. |
| Adjustability | Width, height, depth, & rotational angle (pivot bracket). |
| Sizes | 10″L x 3.5″H, 12″L x 3.5″H, 14″L x 4″h, 16″L x 4″H, 18″L x 4″H |
